Green up one 3,7 KW attached cable

Name: Green up one 3,7 KW attached cable
SKU: 057010

Green'up One LEGRAND

REF. 057010 EAN. 3414972517966

Compare You can only compare 4 products, you must remove 1 to add this one

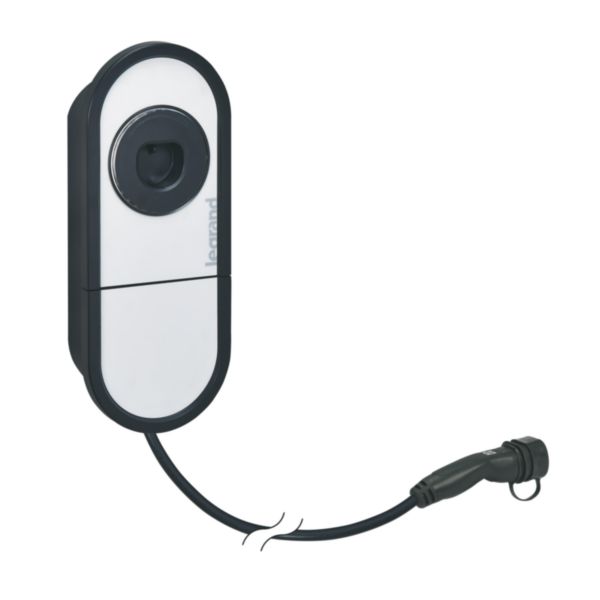

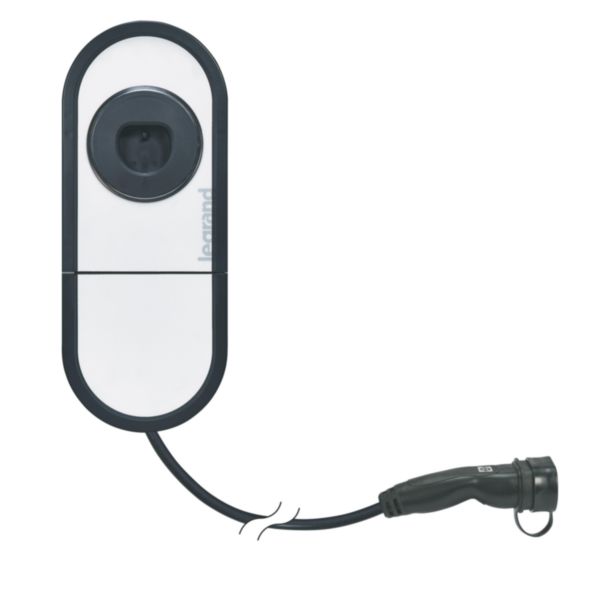

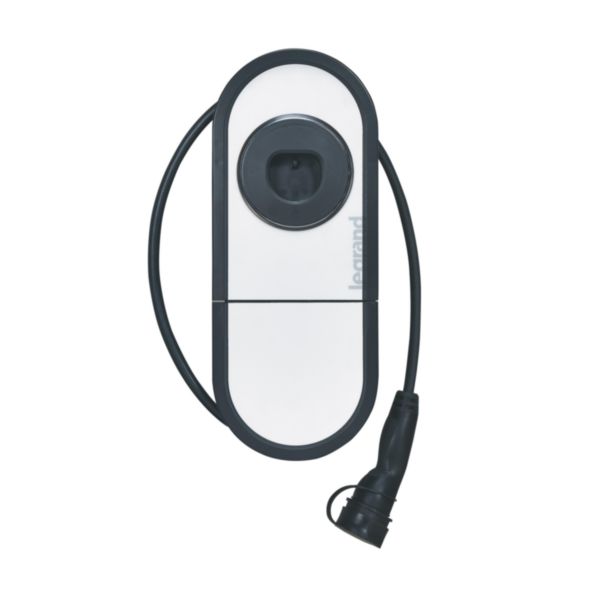

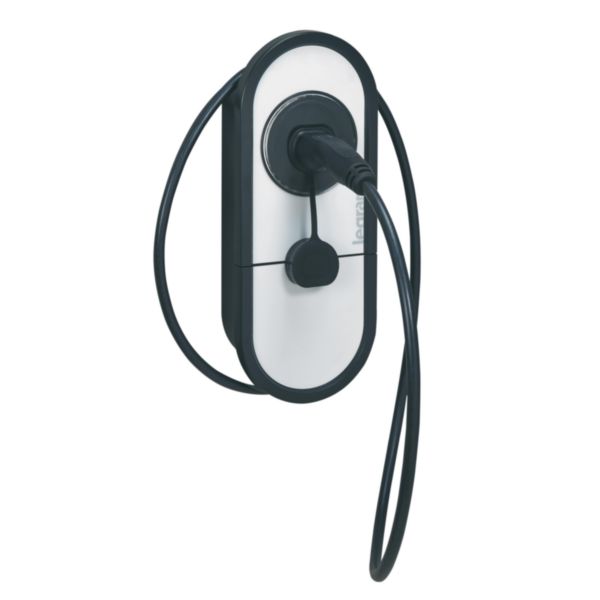

To charge your electric or hybrid vehicle, this charging station is connected in single-phase 230V - 16A and allows a charge in complete safety in Mode 3, light and compact, can be fixed on a wall.
Local wireless comm unication via Bluetooth : update, configuration and control of the charging station via smartphone, tablet via App. Charger Control
Possible to comm and externally by contactor, clock, switch, connected dry contact Drivia with Netatmo …
Power can be limit through the App Charger Control
Power can be modulate during the charge to not exceed the energy contract of the house, with an additional Legrand energy meter (not included)

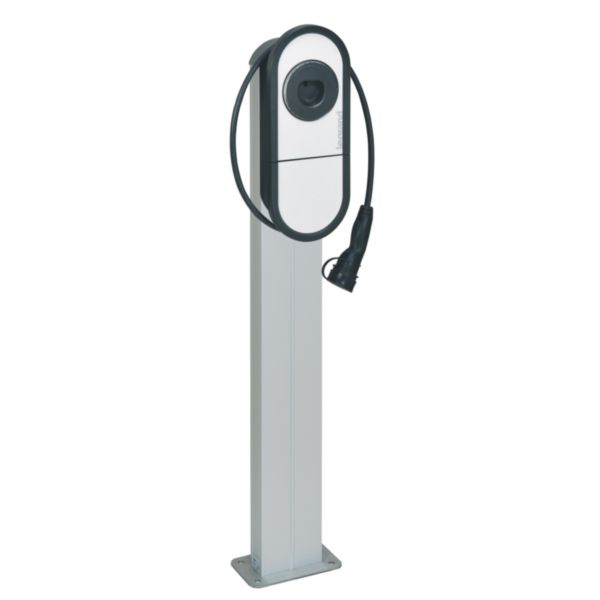

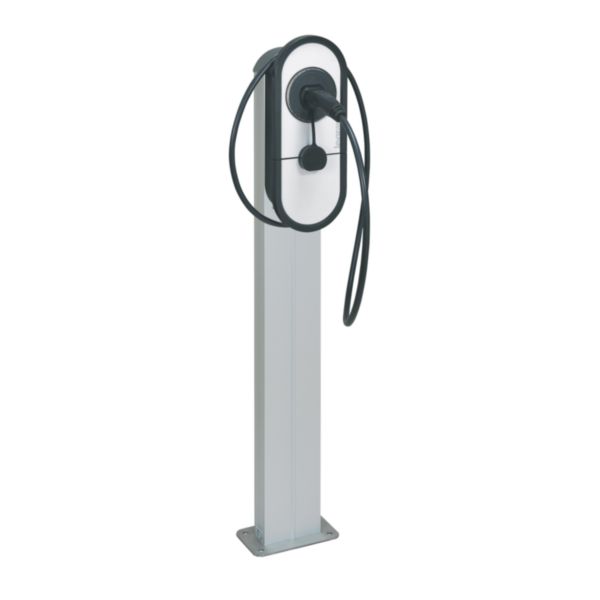

Direct wall mounting or option pole to fix on the floor (1 or 2 Charging station on the same pole)

Update of the charging station accessible easily with the Bluetooth application. Allows you to update for free.

Installation side connection model	Single phase
Frequency	50 Hz
Nominal connection power	3.7 kW
Number of charging units	1
Max. power per charging point	3.7 kW
Width	208 mm
Height	513 mm
Depth	135 mm
With house connection box	No
Length of charging cable	5 m
DC residual current detection	Yes
Networkable via LAN	No
Mobile communications standard 5G	No

Static load management integrated	Yes
Suitable for dynamic load management	Yes
With display	No
Housing material	Plastic
Degree of protection (IP)	IP54
degree of impact strength (IK)	IK10
Operation and configuration by app	Yes
Connectable conductor cross section (Min-Max)	2.5 - 10 mm²
Backend included	No
Operating / setting temperature (Min-Max)	-40-50 °C
Programming way	Smartphone apps
Product use function	Electric vehicle charging
