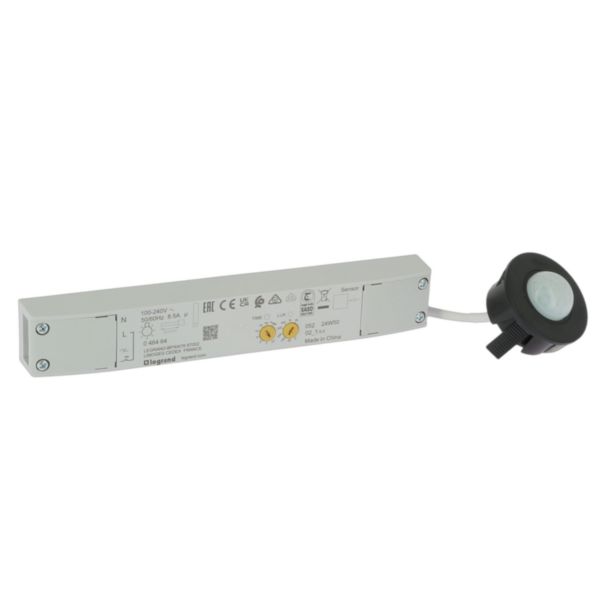

Green-I - GI-MRB-D - Mini recessed dali black sensor - Passive infrared - 360° detection - Flush-mounted

GREEN-I Legrand

Green-I - GI-MRB-D - Mini recessed dali black sensor - Passive infrared - 360° detection - Flush-mounted

REF. 048465 EAN. 3414972965088

The GI-MRB-D is a compact, flush-mounted dali presence detector with 360-degree coverage up to 78.5m². Passive infrared technology, adjustable sensitivity and luminosity, and remote control provide precise lighting management.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The GI-MRB-D is a compact, flush-mounted dali presence detector with 360-degree coverage up to 78.5m². Passive infrared technology, adjustable sensitivity and luminosity, and remote control provide precise lighting management.

Product characteristics
  • Ballast adapts precisely to drill hole dimensions, enabling streamlined flush-mounted installation and minimising onsite adjustment.
  • Sensor features a robust push-button interface for dynamic control, supporting dali integration and constant light management.
  • Flexible configuration via graduated potentiometers and optional Green-I GI-REM remote control, with adjustable sensitivity (5 to 2000lx) and rapid setup for installers.
  • Zero-crossing technology ensures reliable switching for LED loads, reducing electrical stress and extending component lifespan.
  • Mini head with separate ballast allows installation in confined spaces (diameter 46mm, built-in depth 24mm), combining compact form factor with aesthetic black finish (RAL 9017).
Recommendation / Restriction
  • Recommended for indoor use. Products are designed to be installed by qualified installers; please refer to the technical documentation for further assistance.

The product's benefits

Installation
  • Product designed to make the installer’s job easier: essential functions, easy commissioning thanks to potentiometers or a remote control.
Avantages
  • The design enhances the product's functionality by creating a perfect fusion between form and function, thereby redefining the customer experience.

Technical characteristics

Model Movement sensor
Movement sensor/presence detector technology Passive infrared
Constant light control Yes
HVAC-control No
Animal zone No
Creep-under protection No
Background monitoring No
Networkable No
Scan angle 360 °
Optimum mounting height 2.5 m
Staircase light controller Yes
Bridging switch No
Max. presence range 64 m²
Diameter reach on floor 9 m
Suitable for wireless transmission No
Remote operation Yes
Supplied remote control No
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
With signal unit Yes
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Mounting method Flush-mounted
Suitable for ceiling mounting Yes
Ceiling built-in mounting without installation box Yes
Suitable for wall mounting No
Connection type Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
Colour Black
RAL-number (similar) 9017
Transparent No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Nominal voltage (Min-Max) 100-240 V
Min. switch-on time 10 s
Max. duty cycle 45 min
Detection angle horizontal (Min-Max) 0-360 °
Response value luminosity (Min-Max) 5-2000 lx
Number of switching zones 1
Substation input Yes
With alarm function No
With acoustic sensor No
Ambient temperature (Min-Max) -5-30 °C
Width 46 mm
Height 37 mm
Diameter 46 mm
Built-in depth 24 mm
Built-in diameter 38 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Compatible with Casambi No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-30 °C
Storage temperature (Min-Max) -20-70 °C
Standby consumption 1.9 mA
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Entry membrane gland type Not applicable
Auto switch Yes
