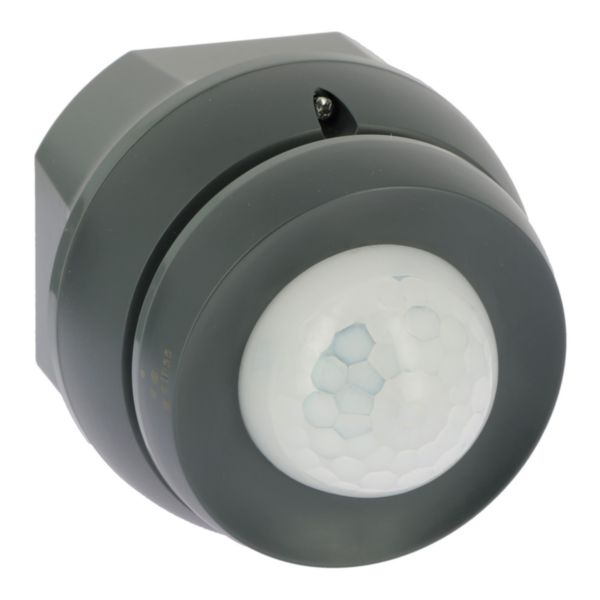

Green-I - GI-IMG - IP55 on-off graphite sensor - Passive infrared - 360° detection angle - Wall mounting
GREEN-I
Legrand
Green-I - GI-IMG - IP55 on-off graphite sensor - Passive infrared - 360° detection angle - Wall mounting
REF. 048461
EAN.
3414972965002
Legrand Green-I outdoor detector graphite ON/OFF offers IP55 protection, 360° detection up to 12m, quick wiring, wall or ceiling mounting, adjustable sensitivity, and dual configuration for reliable presence detection and flexible install
You can only compare 4 products, you must remove 1 to add this one
Description
Legrand Green-I outdoor detector graphite ON/OFF offers IP55 protection, 360° detection up to 12m, quick wiring, wall or ceiling mounting, adjustable sensitivity, and dual configuration for reliable presence detection and flexible install
Product characteristics
- Innovative mounting method utilising flexible entry membrane gland and screwed terminals enables rapid and secure wiring for wall installation.
- Push-button interface provides dynamic control, complemented by adjustable response sensitivity and luminosity for precise operation.
- Flexible configuration is achieved via graduated potentiometers and optional Green-I GI-REM remote control, allowing quick setup and customisation for installers.
- Zero-crossing technology ensures compatibility with LED loads, supporting up to 350W for reliable switching and extended lamp life.
- Reinforced IP55 passive infrared sensor with adjustable vertical pivoting range (−60° to 60°) offers optimal flexibility and robust protection for demanding environments.
Recommendation / Restriction
- Recommended for outdoor use. Products are designed to be installed by qualified installers; please refer to the technical documentation for further assistance.
The product's benefits
Installation
- Product designed to make the installer’s job easier: essential functions, plug-in terminals for quick installation, and easy commissioning thanks to potentiometers or a remote control.
Avantages
- The design enhances the product's functionality by creating a perfect fusion between form and function, thereby redefining the customer experience.
- The product features plug-in screw terminals, a design innovation that offers flexibility to make wiring work easier.
Technical characteristics
| Model | Presence detector |
|---|---|
| Movement sensor/presence detector technology | Passive infrared |
| Constant light control | Yes |
| HVAC-control | No |
| Animal zone | No |
| Creep-under protection | No |
| Background monitoring | No |
| Networkable | No |
| Scan angle | 360 ° |
| Optimum mounting height | 2.5 m |
| Staircase light controller | Yes |
| Bridging switch | No |
| Max. reach sideways | 4.2 m |
| Max. reach frontally | 2.5 m |
| Suitable for wireless transmission | No |
| Remote operation | No |
| Supplied remote control | Yes |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| With signal unit | Yes |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Mounting method | Other |
| Suitable for ceiling mounting | No |
| Ceiling built-in mounting without installation box | No |
| Suitable for wall mounting | Yes |
| Connection type | Screwed terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| Colour | Grey |
| RAL-number (similar) | 7016 |
| Transparent | No |
| Degree of protection (IP) | IP55 |
|---|---|
| degree of impact strength (IK) | IK04 |
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Nominal voltage (Min-Max) | 100-240 V |
| Min. switch-on time | 10 s |
| Max. duty cycle | 30 min |
| Detection angle horizontal (Min-Max) | 0-360 ° |
| Pivoting range sensor, vertical (Min-Max) | -60-60 ° |
| Response value luminosity (Min-Max) | 5-2000 lx |
| Max. switching power | 2000 W |
| Max. switching power LED | 350 W |
| Suitable for C-load | Yes |
| Number of switching zones | 1 |
| Substation input | Yes |
| With alarm function | No |
| With acoustic sensor | No |
| Ambient temperature (Min-Max) | -5-30 °C |
| Width | 90 mm |
| Height | 90 mm |
| Diameter | 90 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
| IFTTT support available | No |
| Operating / setting temperature (Min-Max) | -5-30 °C |
| Storage temperature (Min-Max) | -20-70 °C |
| Standby consumption | 1.6 mA |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Entry membrane gland type | Flexible to cut |
| Auto switch | Yes |
