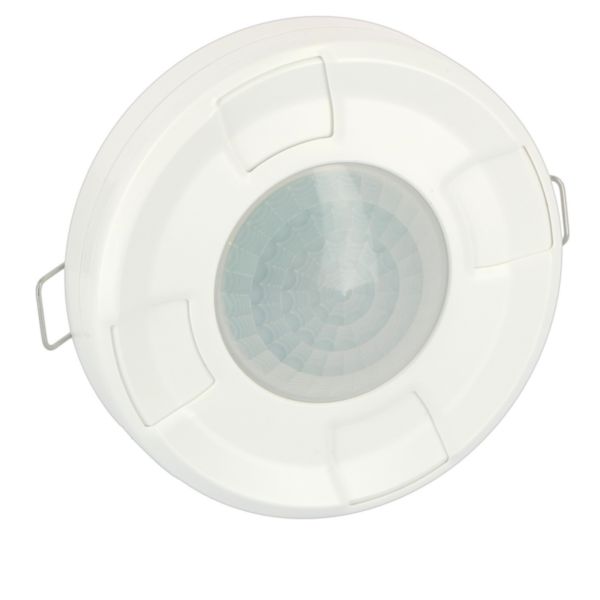

Green-I - GI-HRW - Highbay recessed on-off white sensor - Passive infrared - 360° detection - IP55
GREEN-I
Legrand
Green-I - GI-HRW - Highbay recessed on-off white sensor - Passive infrared - 360° detection - IP55
REF. 048471
EAN.
3414972965200
The GI-HRW Green-I High Ceiling Detector provides 360° passive infrared detection over 380.1m², ideal for ON/OFF lighting in high-bay areas. Features patented sliding ring, adjustable potentiometers, quick wiring, and flush-mount
You can only compare 4 products, you must remove 1 to add this one
Description
The GI-HRW Green-I High Ceiling Detector provides 360° passive infrared detection over 380.1m², ideal for ON/OFF lighting in high-bay areas. Features patented sliding ring, adjustable potentiometers, quick wiring, and flush-mount
Product characteristics
- Innovative plug-in screw terminals support both flexible and rigid cables (1.5mm² to 2.5mm²), enabling rapid and secure wiring for efficient installation.
- Equipped with a push-button interface and signal unit, the sensor allows dynamic control and immediate manual override for precise operation.
- Flexible configuration is achieved via graduated potentiometers and the optional Green-I GI-REM remote control, with adjustable sensitivity (5 to 2000lx) and response values for quick setup.
- Zero-crossing technology ensures compatibility with LED loads up to 350W, providing reliable switching and extended lamp life.
- Wide detection coverage with a 360° scan angle and up to 380.1m² presence range, optimised for high ceilings with a recommended mounting height of 10m.
Recommendation / Restriction
- Recommended for indoor use. Products are designed to be installed by qualified installers; please refer to the technical documentation for further assistance.
The product's benefits
Installation
- Product designed to make the installer’s job easier: essential functions, plug-in terminals for quick installation, and easy commissioning thanks to potentiometers or a remote control.
Avantages
- The product features a patented sliding ring that discreetly conceals the potentiometers while keeping them easily accessible. The design enhances the product's functionality by creating a perfect fusion of form and function, thereby redefining the customer experience.
- The product incorporates plug-in screw terminals, an innovative design that offers flexibility and makes wiring work easier.
Technical characteristics
| Model | Movement sensor |
|---|---|
| Movement sensor/presence detector technology | Passive infrared |
| Constant light control | Yes |
| HVAC-control | No |
| Animal zone | No |
| Creep-under protection | No |
| Background monitoring | No |
| Networkable | No |
| Scan angle | 360 ° |
| Optimum mounting height | 10 m |
| Staircase light controller | No |
| Bridging switch | No |
| Max. presence range | 314 m² |
| Diameter reach on floor | 20 m |
| Suitable for wireless transmission | No |
| Remote operation | Yes |
| Supplied remote control | No |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| With signal unit | Yes |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Mounting method | Flush-mounted |
| Suitable for ceiling mounting | Yes |
| Ceiling built-in mounting without installation box | Yes |
| Suitable for wall mounting | No |
| Connection type | Screwed terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Degree of protection (IP) | IP55 |
| degree of impact strength (IK) | IK04 |
|---|---|
| Voltage type | AC |
| Frequency (Min-Max) | 50-60 Hz |
| Nominal voltage (Min-Max) | 100-240 V |
| Min. switch-on time | 10 s |
| Max. duty cycle | 30 min |
| Detection angle horizontal (Min-Max) | 0-360 ° |
| Response value luminosity (Min-Max) | 5-2000 lx |
| Max. switching power | 2000 W |
| Max. switching power LED | 350 W |
| Suitable for C-load | Yes |
| Number of switching zones | 1 |
| Substation input | Yes |
| With alarm function | No |
| With acoustic sensor | No |
| Ambient temperature (Min-Max) | -5-30 °C |
| Width | 108 mm |
| Height | 82 mm |
| Depth | 70 mm |
| Diameter | 108 mm |
| Built-in depth | 53 mm |
| Built-in diameter | 67 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
| IFTTT support available | No |
| Operating / setting temperature (Min-Max) | -5-30 °C |
| Storage temperature (Min-Max) | -20-70 °C |
| Standby consumption | 1.6 mA |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Entry membrane gland type | Not applicable |
| Auto switch | Yes |
