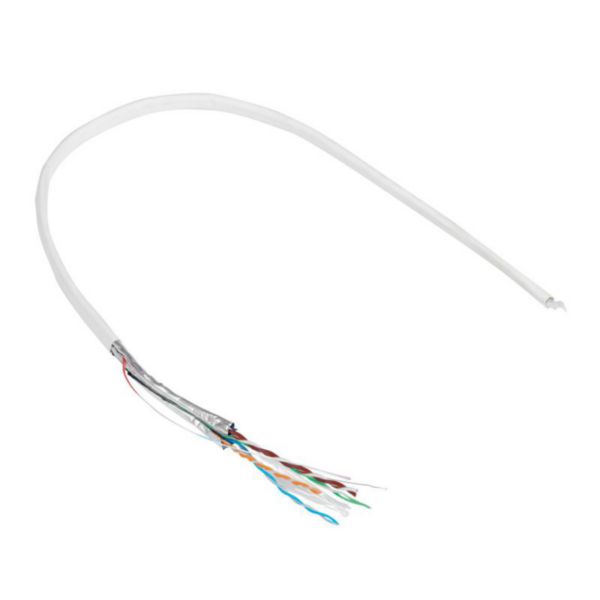

Grade 2TV cable long 50m

Name: Grade 2TV cable long 50m
SKU: 093044

Legrand

REF. 093044 EAN. 3414971080911

Compare You can only compare 4 products, you must remove 1 to add this one

Duplex	No
Conductor surface	Bare
Diameter conductor	0.56 mm
Nominal cross section conductor	0.25 mm²
AWG size	23
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	None
Stranding	Bundle
Screen over stranding	Foil
Longitudinal water blocking cable	No
Radial water blocking cable	Yes
Suitable for underground installation	No
Approved type of underground installation	Other
Protective sheath	None
Material outer sheath	Other
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	White
Armouring/reinforcement	None

Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Low smoke according to EN IEC 61034-2	Yes
Halogen free according to EN IEC 60754-1	Yes
Halogen free according to EN IEC 60754-2	Yes
Reaction-to-fire according to EN 13501-6: Class	Dca
Reaction-to-fire according to EN 13501-6: Smoke production	S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	D2
Reaction-to-fire according to EN 13501-6: Acidity	a2
Outer diameter approximate	8.1 mm
Min. permitted bending radius, moving application with forced guidance	65 mm
Min. permitted bending radius, stationary application/permanent installation	32.5 mm
Permitted cable outer temperature during assembling/handling (Min-Max)	0-50 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)	-20-60 °C
Category	Other
NVP value	78 %
Certified for shipboard application	No
Suitable as telephone cable	Yes
Suitable as computer data cable	Yes
Weight	41 kg/km
Compatible with Grade2TV according to XP-C 90-483	Yes
Compatible with Grade3TV according to XP-C 90-483	No
Storage temperature (Min-Max)	-20-60 °C
RAL-number	9010
