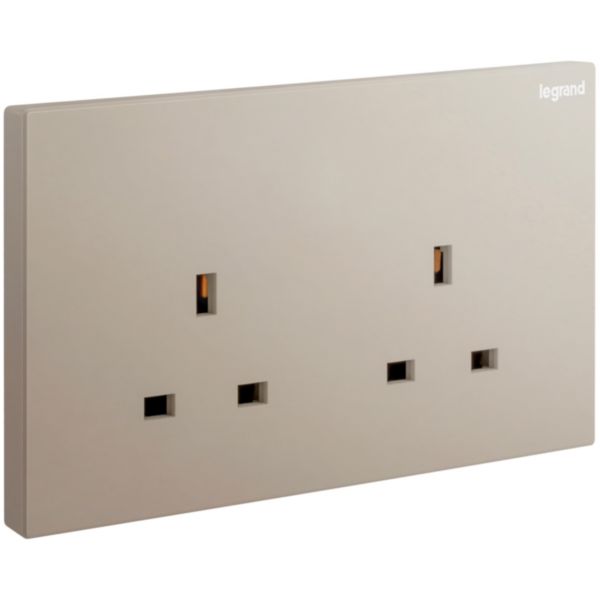

Galion - 2 gangs British Standard 13A unswitched socket - Champagne

Name: Galion - 2 gangs British Standard 13A unswitched socket - Champagne
SKU: 282431-C2

Galion LEGRAND

REF. 282431-C2 EAN. 3414972221290

Compare You can only compare 4 products, you must remove 1 to add this one

Slim and aesthetic range, with a slightly curved plate, Equivalent aesthetic as all other functions

A wide selection of functions to satisfy all the requirements of projects
Product delivered with paint and dust protection
Delivered with screws for flush-mounting or surface-mounting boxes, plastic or metal

Model	British Standard
Concurrently switching neutral conductor	No
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	4
Number of active contacts (square)	0
Assembly arrangement	Basic element with full cover plate
With complemantary luminous signal	No
Number of ports USB-A	0
Number of ports USB-C	0
Number of socket outlets	2
Number of modules (module system)	4
Number of socket outlets switchable	0
Number of phases	1
Connection type	Screwed terminal
With hinged lid	Yes
With enhanced contact protection	Yes
Colour	Gold
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic

Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Antimicrobial treatment	No
With on/off switch	No
Nominal current	13 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	146 mm
Device height	88 mm
Device depth	26.1 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Built-in depth	16.9 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
Connected object	No
