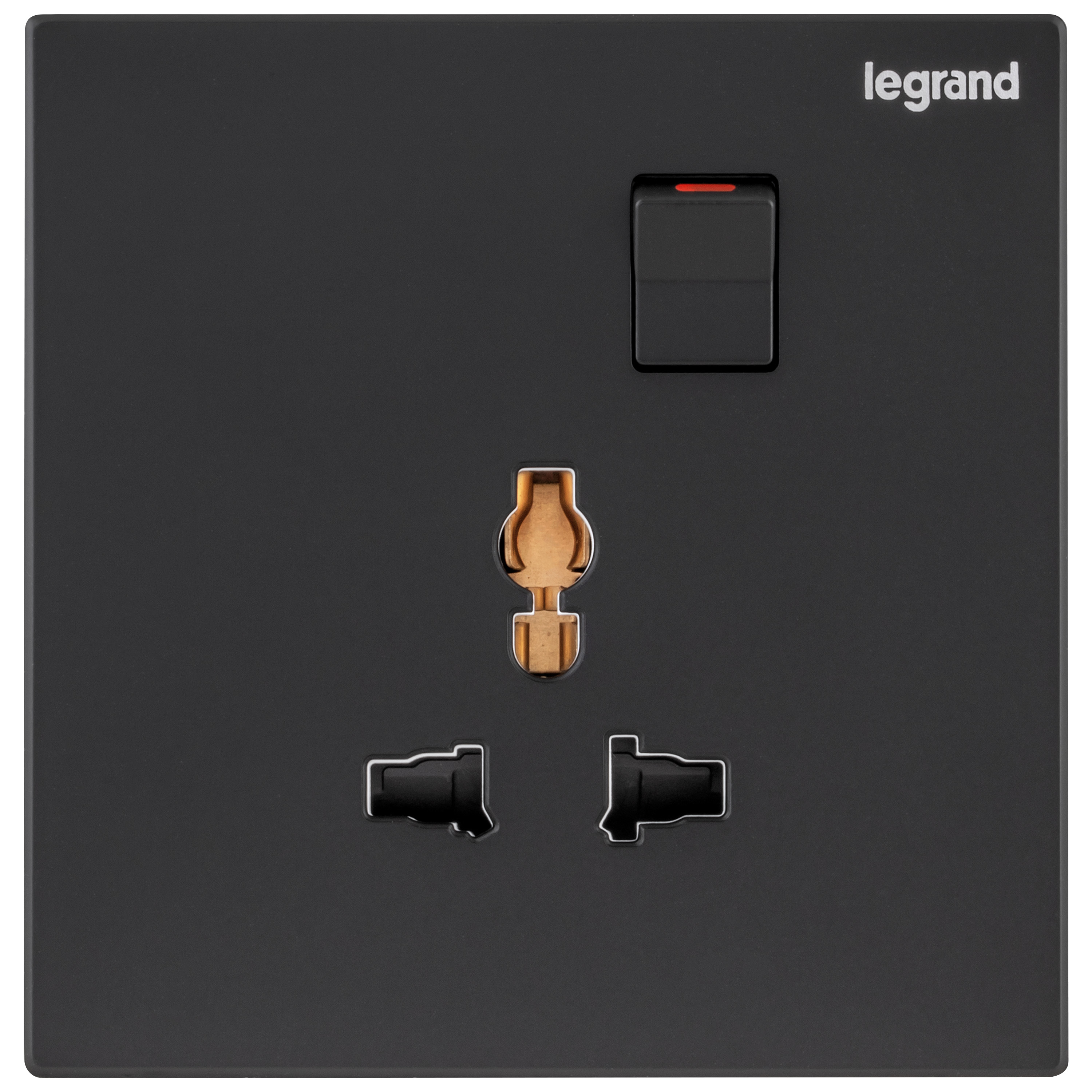

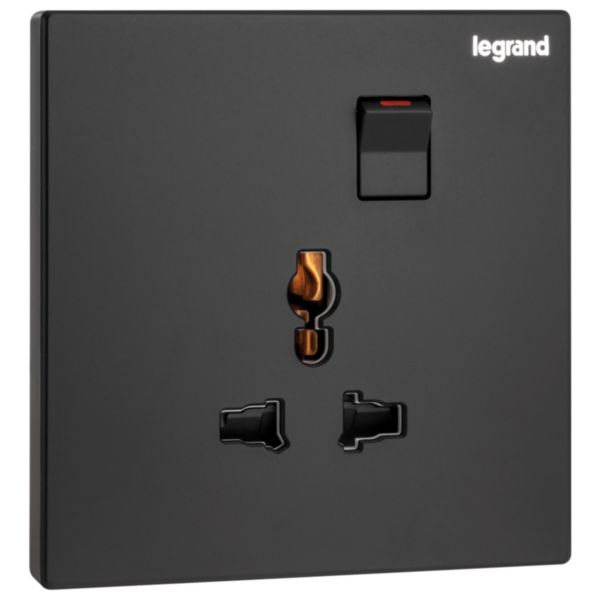

Galion - 1 gang Multistandard switched socket outlet - Matt Black

Galion LEGRAND

Galion - 1 gang Multistandard switched socket outlet - Matt Black

REF. 282434-C EAN. 3414971854857
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 2P+E Multi standard, 15A, 127V~ - 16A, 250V~
  • Sold complete under one catalog number, ready to install.
  • Screw type terminals for secure and enhanced contacts
  • Marked terminals for easy identification
  • Strip length indicator avoids waste of wires
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation

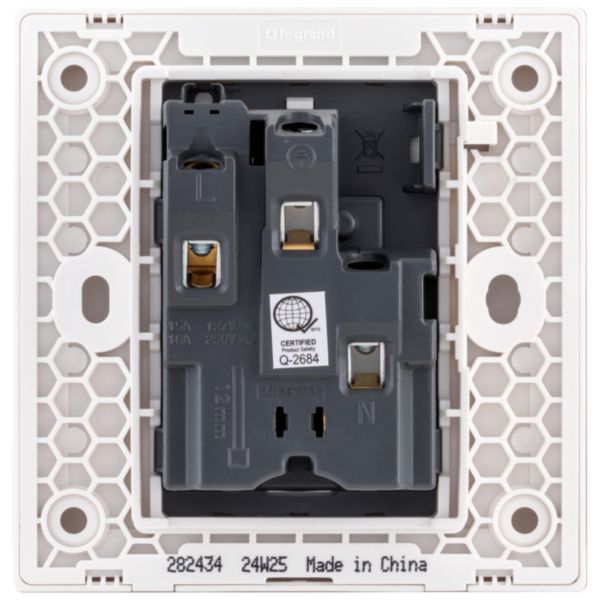

  • Honeycomb design supporting frame for stability and rigidity
Usage
  • Fitted with safety shutters to maximise child protection
Avantages
  • Product delivered with paint and dust protection
  • Delivered with screws for flush-mounting or surface-mounting boxes, plastic or metal

Technical characteristics

Model Multi-standard socket
Protective contact Other
Assembly arrangement Basic element with full cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets switchable 1
Number of phases 2
Imprint/indication Scanable symbol/barrier free
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Colour Black
Metallic colour No
Transparent No
Lockable No
Eject-mechanism Yes
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With on/off switch Yes
Nominal current 16 A
Nominal voltage 250 V
Frequency 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 88 mm
Device depth 41.2 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
Built-in depth 29.3 mm
Operating / setting temperature -5-50 °C
Storage temperature -10-70 °C
Voltage type AC
Power Delivery No
Terminal marking indication Yes
Terminals capacity 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section 1-4 mm²
Connected object No

Documentation

1 document
Technical Sheet
1 document
Catalogue Commercial Page
ex223001_0681.pdf pdf (0.09 Mo)
1 document
PEP
LGRP-02060-V01.01-EN.pdf pdf (0.72 Mo)
