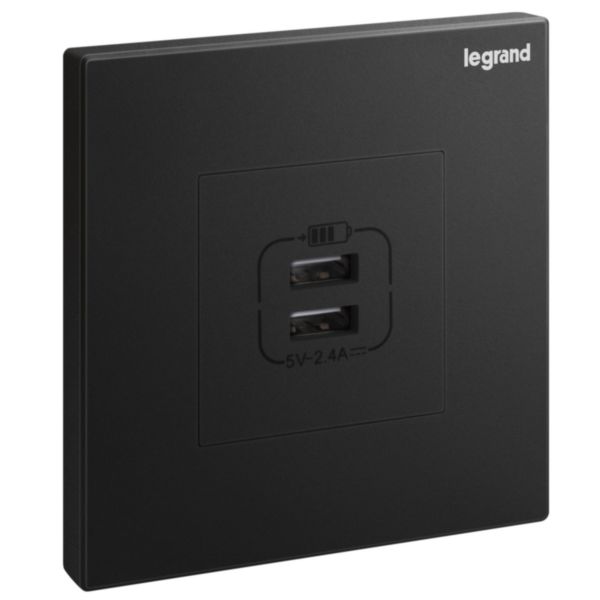

Galion 1 gang double USB 2,4A type-A USB chargers - matt black


Galion 1 gang double USB 2,4A type-A USB chargers - matt black

REF. 282447-C EAN. 3414971855250
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Other
Number of ports USB-A 2
Number of ports USB-C 0
Operating voltage 100-240 V
Frequency 50-60 Hz
Max. output current 3000 mA
Output voltage 5-5 V
Power consumption 0.068 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour Black
Device width 86 mm
Device height 88 mm
Device depth 40 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP40
Degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 30.9 mm
Operating / setting temperature 5-40 °C
Storage temperature -20-70 °C
Voltage type AC
Nominal voltage 100-240 V
Power Delivery No
Supply current 0.5-0.5 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section 1.5-2.5 mm²


1 document
Technical Sheet
1 document
Catalogue Commercial Page
ex223001_0682.pdf pdf (0.08 Mo)
1 document
OC / CB-CN47000-M1 (0.38 Mo)
