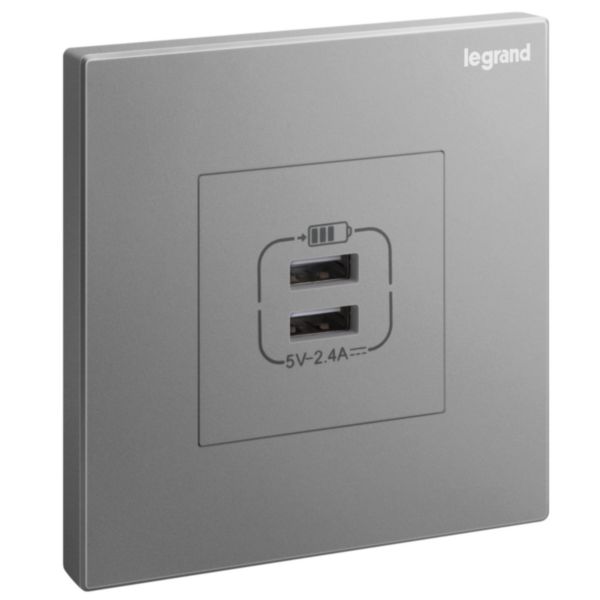

Galion - 1 gang double USB 2,4A type-A USB chargers - Dark Silver

Name: Galion - 1 gang double USB 2,4A type-A USB chargers - Dark Silver
SKU: 282447-C3

Galion LEGRAND

REF. 282447-C3 EAN. 3414971703100

Compare You can only compare 4 products, you must remove 1 to add this one

One gang to charge two portable devices such as smartphones, tablets, MP4 players, loudspeakers, watches, games consoles, power banks, …

USB 12W ideal for optimal charging of smartphones or tablets
Product delivered with paint and dust protection
Delivered with screws for flush-mounting or surface-mounting boxes, plastic or metal

Model	Other
Number of ports USB-A	2
Number of ports USB-C	0
Operating voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Max. output current	3000 mA
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	Silver
Device width	86 mm
Device height	88 mm
Device depth	40 mm
Min. depth of built-in installation box	30 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK02

Antimicrobial treatment	No
Built-in depth	30.9 mm
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Power Delivery	No
USB Output Power	12
Standby consumption	0.4 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	Yes
Halogen free	Yes
Number of terminals	2
Terminals capacity (Min-Max)	1-4 mm²
