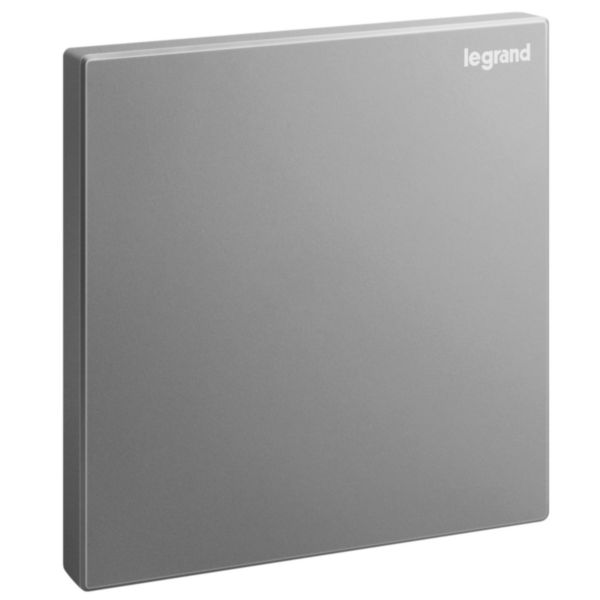

Galion - 1 gang blanking plate - Dark Silver

Galion LEGRAND

Galion - 1 gang blanking plate - Dark Silver

REF. 282470-C3 EAN. 3414971702110
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Temporarily cover access to former/ future electrical function
  • Sold complete under one catalog number, ready to install.
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Honeycomb design supporting frame for stability and rigidity
Usage
  • Same aesthetic as the whole range
Avantages
  • Product delivered with paint and dust protection
  • Delivered with screws for flush-mounting or surface-mounting boxes, plastic or metal

Technical characteristics

Material Plastic
Height 88 mm
Hole diameter 4.2 mm
Depth 10.7 mm
Width 86 mm
Colour Other
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted

Documentation

1 document
Technical Sheet
F02863EN-00 Blank.pdf pdf (0.51 Mo)
1 document
Catalogue Commercial Page
ex223001_0683.pdf pdf (0.1 Mo)
1 document
Agreement
OC / CB-CN41373M1 (0.38 Mo)
