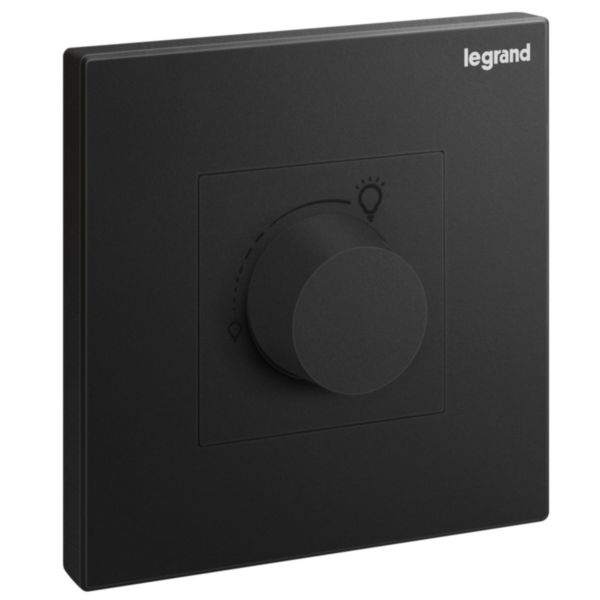

Galion - 1 gang 5 to 300 watts -incandescent or 5 to 75 watts led rotary dimmer -100-240 volts - 50/60 HZ -Matt Black
Galion
LEGRAND
Galion - 1 gang 5 to 300 watts -incandescent or 5 to 75 watts led rotary dimmer -100-240 volts - 50/60 HZ -Matt Black
REF. 282419-C
EAN.
3414971854284
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Basic element with complete housing |
|---|---|
| Method of operation | Turn button |
| Number of modules (module system) | 2 |
| App control via Bluetooth | No |
| Dimming phase cut-on (leading edge) | Yes |
| Dimming phase cut-off (trailing edge) | Yes |
| Serial dimmer | No |
| Type of load | Universal and LED Retrofit |
| Substation input | No |
| Light value memory | No |
| Applicable with button | Yes |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Black |
| Transparent | No |
| Suitable for degree of protection (IP) | IP40 |
|---|---|
| degree of impact strength (IK) | IK02 |
| Nominal voltage | 100-240 V |
| Frequency | 50-60 Hz |
| Nominal power resistive load | 5-300 W |
| Connection type | Screwed terminal |
| Cable section | 1-6 mm² |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 32 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 32.6 mm |
| Operating / setting temperature | -5-45 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Mandatory neutral | No |
| Terminal marking indication | No |
| Stress test conformity (1000V) | Yes |
| Antimicrobial treatment | No |
| Terminals capacity | 1-6 mm² |
