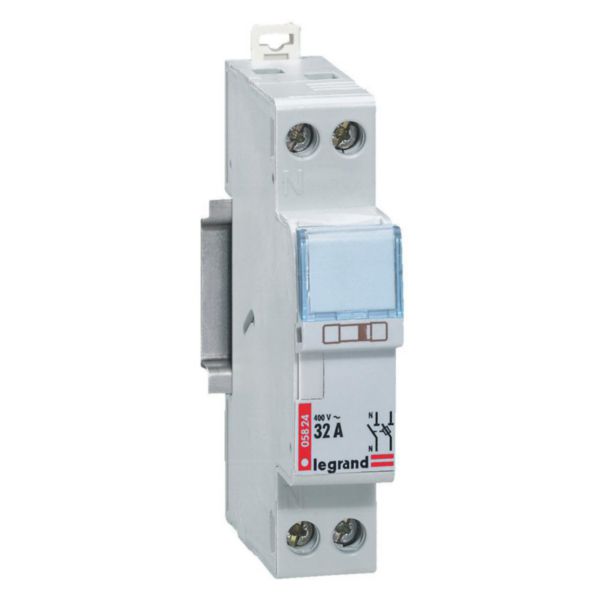

Fuse carrier 1P+N for industrial cylindrical cartridge fuse 10 x 38 mm

LEGRAND

Fuse carrier 1P+N for industrial cylindrical cartridge fuse 10 x 38 mm

REF. 005818 EAN. 3245060058180
Switch-disconnector for disconnection and protection of electrical circuits up to 500V with 1P+N industrial 10x38mm cylindrical fuses. Class II insulation, padlockable carrier, DIN rail mounting and IP20 terminals ensure safe isolation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Switch-disconnector for disconnection and protection of electrical circuits up to 500V with 1P+N industrial 10x38mm cylindrical fuses. Class II insulation, padlockable carrier, DIN rail mounting and IP20 terminals ensure safe isolation.

Product characteristics
  • With insulated carrier class II, padlockable with Accessory 005799
  • Terminals capacity 1 x 16 mm² maxi, IP 2X, screw head PZ1
  • Conforms to IEC standards 60269 - 1, 60269 - 2, 60269 - 2 - 1 and standard NF C 63 - 210
  • Possibilty to signal indicator blown fuse with accessory 005790
  • Fuse not supplied
Recommendation / Restriction
  • This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

The product's benefits

Installation
  • Fitted with two DIN rail clamps, one top side and one bottom side, allowing an independent removal of this product when the prong busbar supplying the row is still in place.
Usage
  • Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.

Technical characteristics

Nominal voltage 500 V
Mounting method DIN rail
For fuse size 10x38 mm
Number of poles 1
Concurrently switching neutral conductor Yes
Lockable Yes
With optical defect indication No
Degree of protection (IP) IP20
RAL-number 7035

Documentation

2 documents
Technical Sheet
FA222CEN_03.pdf pdf (0.8 Mo)
Technical Sheet
FA222C_03.pdf pdf (0.76 Mo)
2 documents
Product Environmental Profile (PEP)
LGRP-2015-149-V1-EN.pdf pdf (0.62 Mo)
RoHS DIRECTIVE
1 document
Catalogue Commercial Page
ex223001_0092.pdf pdf (0.23 Mo)
1 document
3D Autocad
005818.dwg dwg (0.06 Mo)
