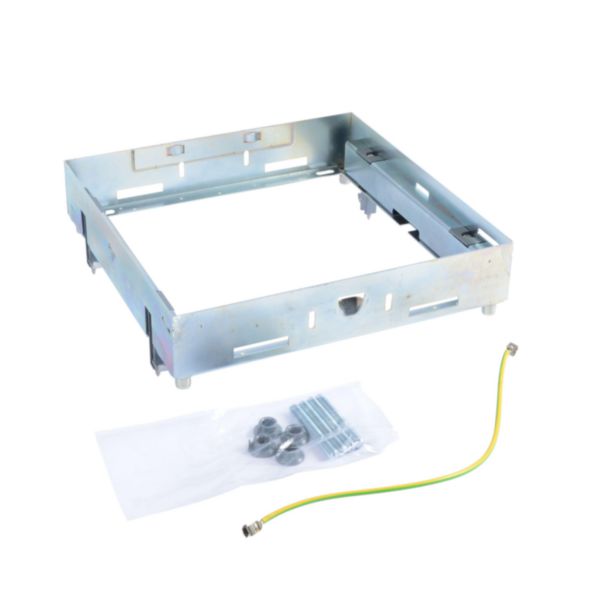

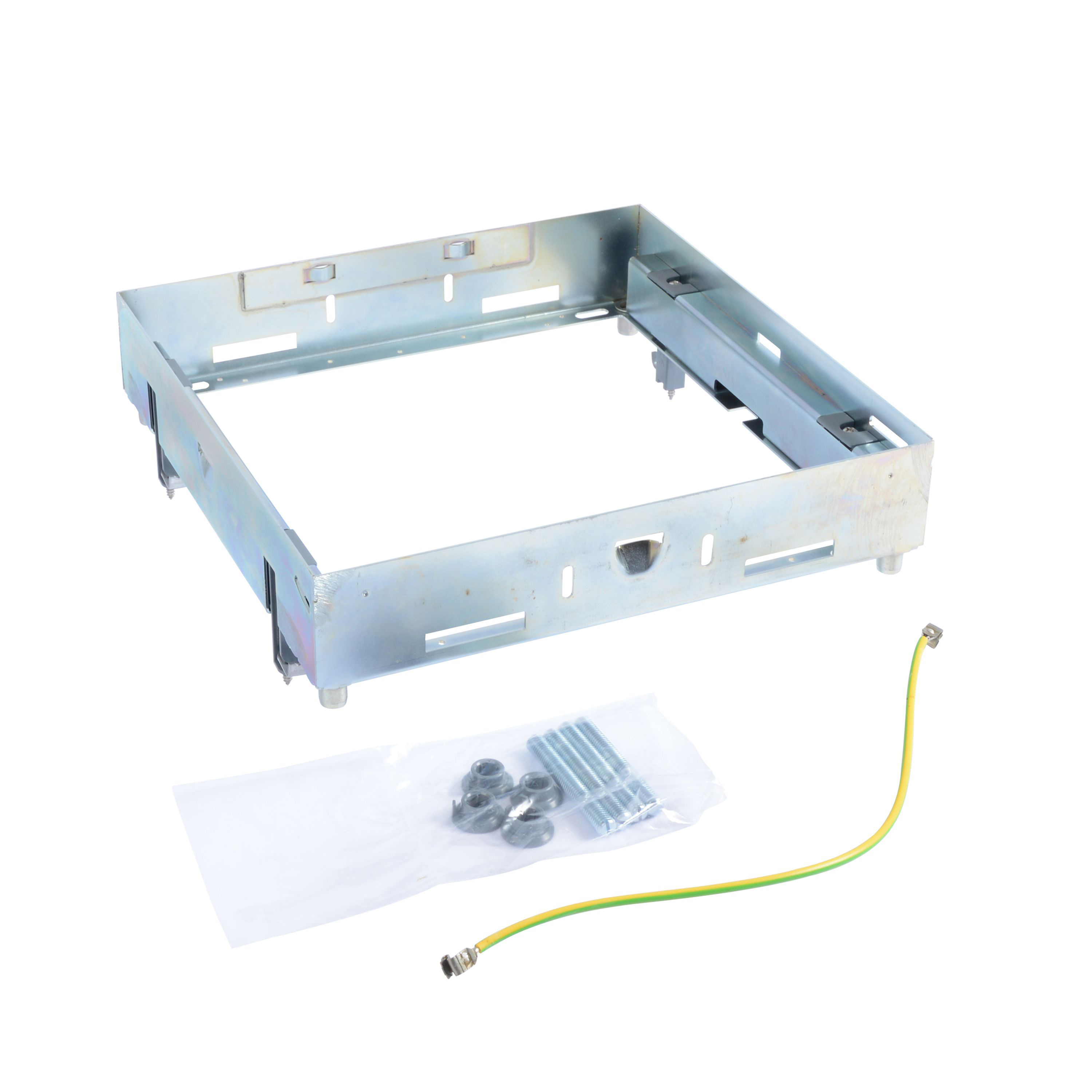

Frame for access unit of flush floor box size equivalent to the supports kits 16M vertical or 24M horizontal
-
LEGRAND
Frame for access unit of flush floor box size equivalent to the supports kits 16M vertical or 24M horizontal
REF. 088141
EAN.
3414970756343
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
Cover model | Square |
---|---|
Number of device cups | 1 |
Housing material | Other |
With opening carpeting | No |
Protective frame carpeting | No |
Colour | Grey |
Suitable for subfloor duct | Yes |
Suitable for hollow floor | Yes |
---|---|
Suitable for double floor built-in | No |
Suitable for wet cleaning | Yes |
Outer width | 264 mm |
Outer length | 264 mm |
Length built-in dimension | 265 mm |
Width built-in dimension | 265 mm |
