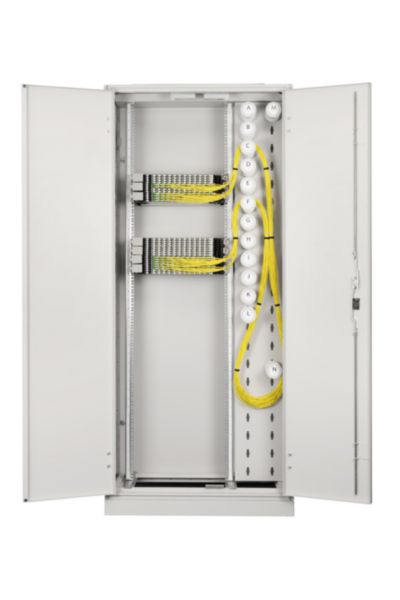

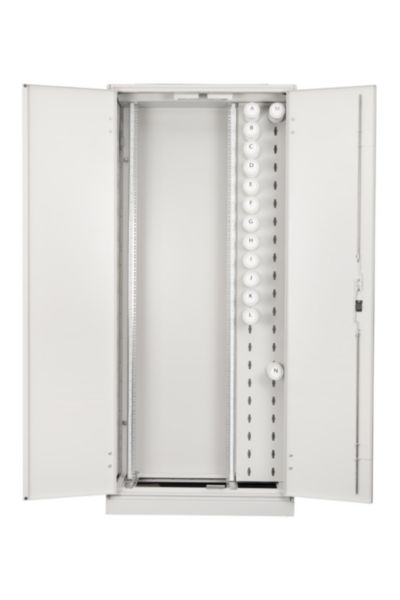

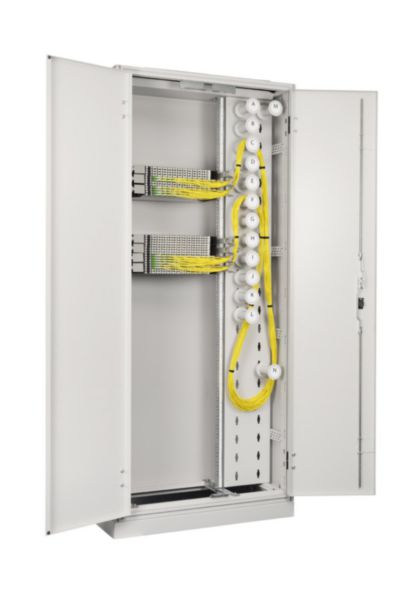

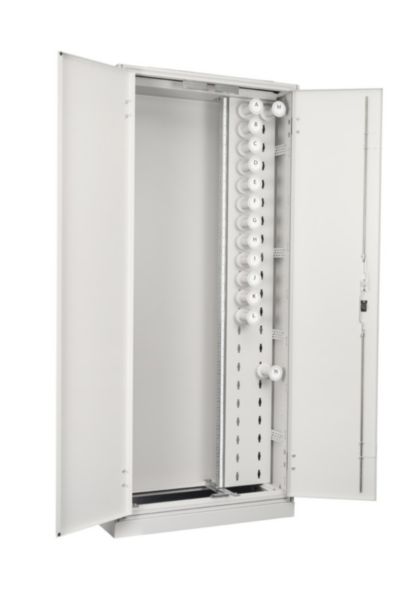

Frame 42U with cable management on the right

Name: Frame 42U with cable management on the right
SKU: C44002

LEGRAND

REF. C44002 EAN. 3414972356404

Compare You can only compare 4 products, you must remove 1 to add this one

Height 42U, HxWxD(mm) = 2050 x 900 x 400
Cabling can be fed into the frame from the bottom as well as from the top
Cable management on the left with letter marking to spot storage and facilitate cord management. Patch management compartment with 14 stubs (12x panel side + 2x central)
Double door at the front with handle, closed sides and rear wall
Powdercoating RAL 7047

The ODF frames offer optimized patch management, especially designed for high density applications. Even with more than 4,000 patches in an ODF frame, this allows the patches to be ranked in a structured way.

Simple installation : the LCS3 Meet-me Room solutions can be mounted in different ways, depending on the installation type (on wall, uprights…). All components can be assembled and disassembled in a simple and quick way thanks to adjustable uprights, stubs that can be positioned according to your needs…

Cabling can be fed into the frame from the bottom as well as from the top. Clear patch management routing due to coded cable management stubs.

With rear door	No
With sidewall	Yes
With base	Yes
With vertical cable management	Yes
Material	Steel
Surface finishing	Powder coating
Colour	Grey
Model	With permanent frame
RAL-number	7047
Demountable	No
Degree of protection (IP)	Other
Degree of protection (NEMA)	Other
degree of impact strength (IK)	Not applicable

2 documents

Select all

Technical Sheet

S000119034EN-00.pdf pdf (0.85 Mo)

Instruction Use

LE13639AA.pdf pdf (2.31 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_1030.pdf pdf (0.16 Mo)
