Name: Flush mounting metal socket Green'up Access - IP55-IK10 - German standard
SKU: 077856

Flush mounting metal socket Green'up Access - IP55-IK10 - German standard

LEGRAND

Flush mounting metal socket Green'up Access - IP55-IK10 - German standard

REF. 077856 EAN. 3414970321275

Compare You can only compare 4 products, you must remove 1 to add this one

Green'up Access sockets 16 A - 230 V - 16 A EV - for electric vehicles - Used for safely charging rechargeable electric and hybrid vehicles which take Mode 2 cord (compatible with Mode 1) - Connected to the consumer panel via one 3 x 2.5 mm ² dedicated line (1 line per socket) protected by 30 mA - 20 A C curve, type A or Hpi RCBO (or 30 mA type A or HPi RCCB + 20 A C curve circuit breaker) - Recomm ended installation height : 1.30 m from the floor - Suitable for residential and workplace use

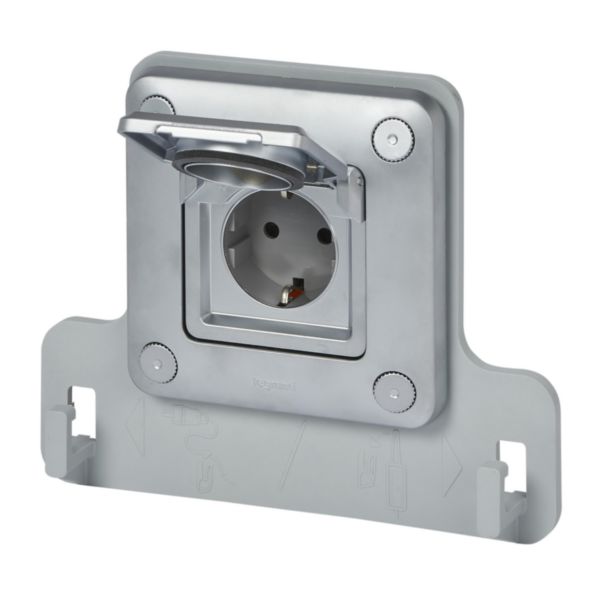

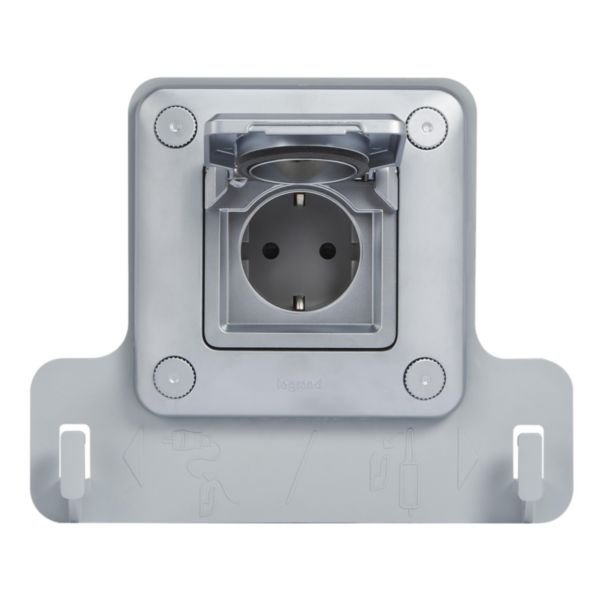

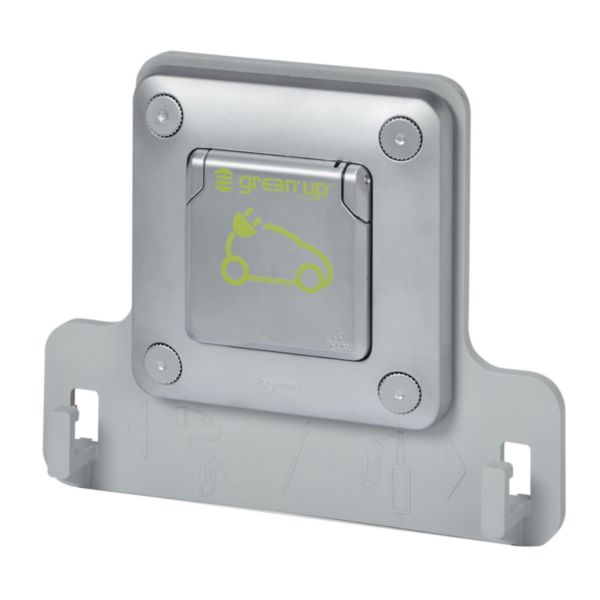

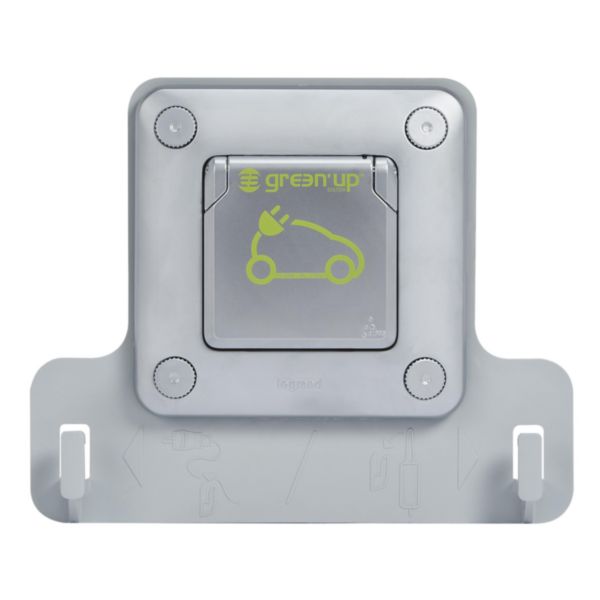

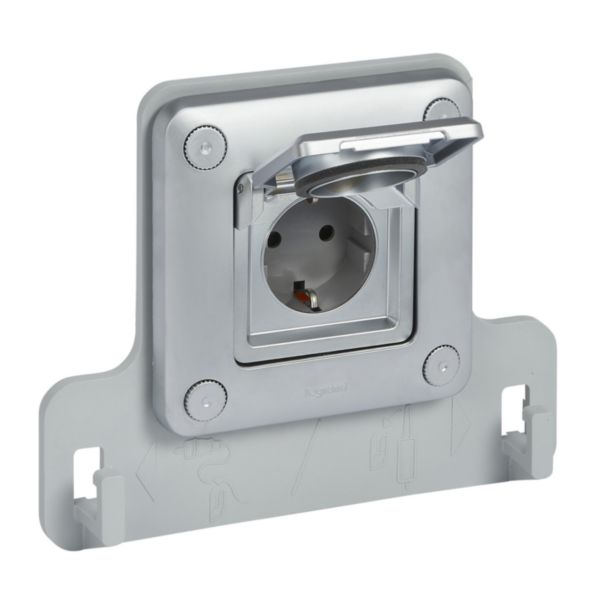

Mode 1 and Mode 2 sockets - 16 A EV - Heavy - duty mechanisms with silvered contacts - single-phase sockets - screw connection - 230 V - Supplied with base Cat.No 0 904 78 for hanging up the vehicle charging cable control box - For charging 1 vehicle - Conform to IEC 60 - 884 - 1IP 55 - IK 10 flush-mounting - metal socket - Suitable for installation In =rivate houses, lock - up garages, parking lots, etc - Supplied complete with plate and support - Mounting In =-gang Batibox flush-mounting box depth 50 mm - Can be surface mounted with box Cat.No 0 778 90 - Dimensions (H x W x D) : 110 x 110 x 13.5 mm - German standard socket outlet

Max. nominal current	16 A
Type of current	AC single phase
Number of communication contacts	3
Length of the fixed connection cable	50 m
LED integrated	No
Cross section of the power contacts (Min-Max)	2.5-2.5 mm²
degree of impact strength (IK)	IK10
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-10-70 °C
Terminals capacity (Min-Max)	2.5-2.5 mm²
