Product charateristics

• Flush-mounting cabinets Practibox³ - from 8 to 72 modules - Class II - IP 40 - IK 07 with door - Self - extinguishing : resistance to incandescent wire 850 °C - Conform to IEC 60670 - 24 and IEC 62208 : allows to achieve assemblies conform to IEC 61439 - 3

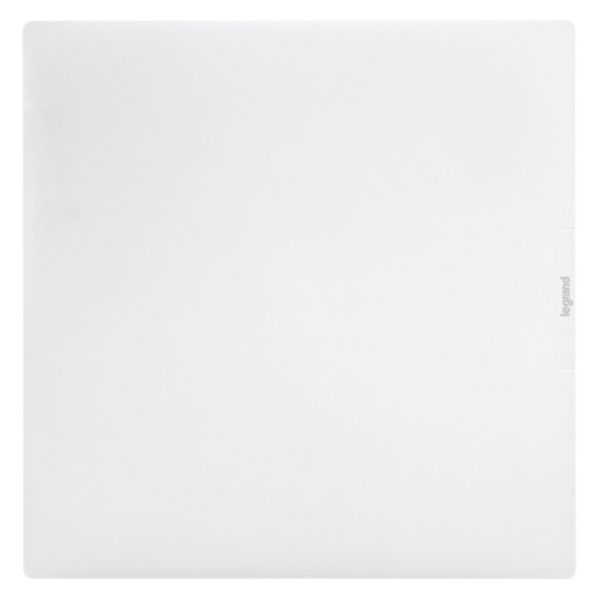

• Flush-mounting distribution cabinets - Box for masonry or dry partitions (with dry partitions kit Cat.No 4 017 24) - Supplied with : - removable chassis with rails fitted - reversible door (door + faceplate for 1 - row cabinets ) - removable faceplates for each row (for 2, 3 and 4 - row cabinets ) - IP 2X screw terminal blocks - blanking plates (5 modules, separable per module or 1/2 module, for 2, 3 and 4 - row cabinets ) - Spacing between rails 150 mm - Door opening : 180° - Can be equipped with lock and key n° 850 Cat.No 0 019 6618 modules per row with white door RAL 9003 - With earth terminal blocks - Number of rows : 2 - Number of modules : 36 - Height : 456 mm - Width : 436 mm - Depth : 85 mm
