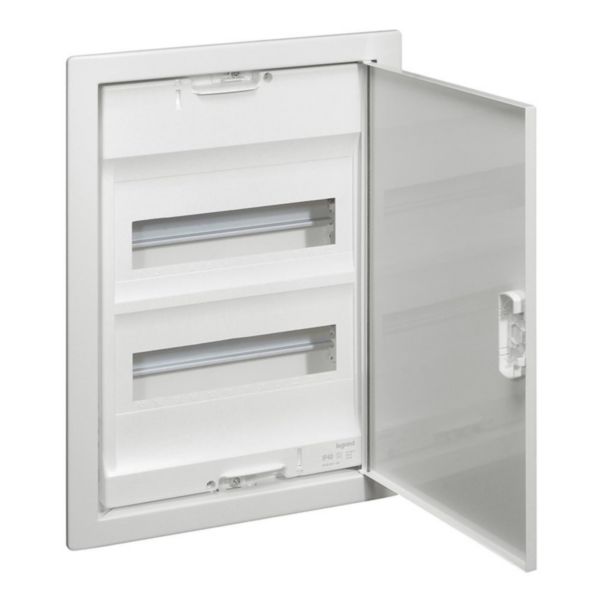

Flush-mounting cabinet Nedbox - metal door white RAL 9010 - 2 rows - 24+4 modules

Name: Flush-mounting cabinet Nedbox - metal door white RAL 9010 - 2 rows - 24+4 modules
SKU: 001442

LEGRAND

REF. 001442 EAN. 3245060014421

Compare You can only compare 4 products, you must remove 1 to add this one

Flush-mounting cabinets Nedbox - 12 to 48 modules - IP 40 - IK 07 - Class II - Allows to achieve assemblies conform to IEC 61439 - 3 - Self extinguishing : resistance to incandescent wire 850°C
Flush-mounting distribution cabinets - White RAL 9003 - Supplied with : - reversible door - screw terminal blocks for neutral and earth - Spacing between rails 125 mm - For installation in dry partitions use the flush-mounting kit Cat.No 0 014 90 - Number of rows : 2 - Number of modules : 24 + 4 - Height : 430 mm - Width : 330 mm - Depth : 87 mm

Mounting method	Flush-mounted
number of rows	2
Width in number of modular spacings	12
Type of covering	Door
Cover model	Closed
Type of door	Single
Transparent cover/door	No
Signal passing door	Yes
With lock	No
Type of closure	Other
Housing material	Steel
Built-in depth	87 mm
Built-in height	426 mm
Built-in width	326 mm
Inner depth	47.5 mm
Earthing terminal block	Yes

Neutral terminal block	Yes
DIN-rail	Yes
With mounting plate	No
Extension possible	No
Colour	White
EMC-version	No
RAL-number	9003
Degree of protection (IP)	IP30
Height	430 mm
Width	330 mm
Depth	90 mm
Enclosure capacity (Nb of modules)	24
degree of impact strength (IK)	IK07
Operating / setting temperature	-10-40 °C
Storage temperature	-20-70 °C
Fitted with rainproof plate protection	No
