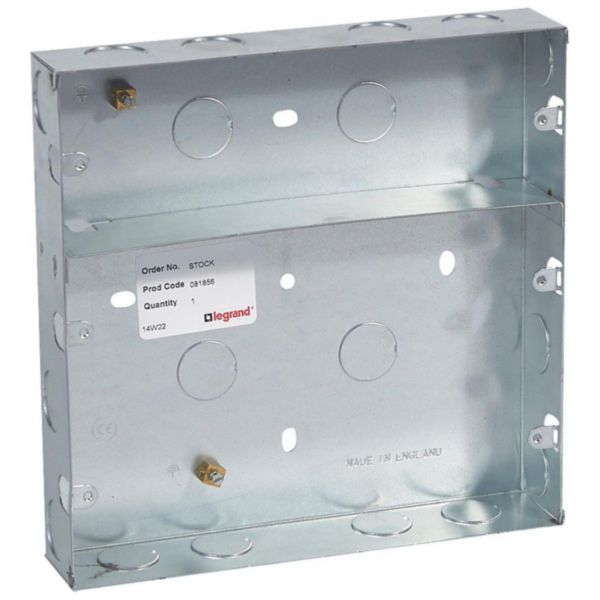

Flush-mounting box - for British standard plates and frames - 3 x 6 modules

Name: Flush-mounting box - for British standard plates and frames - 3 x 6 modules
SKU: 081856

LEGRAND

REF. 081856 EAN. 3245060818562

Compare You can only compare 4 products, you must remove 1 to add this one

Flush-mounting boxes - For British standard 6 and 8 - module plates and frames - For 3 x 6 modules - 212 x 212 x 42mm

Mounting method	Flush-mounted
Shape	Square
Construction type	Device connection box (round/square)
Model	Other
Provided with revolving ring	No
Couplable	No
Equipped with	None
Length	212 mm
Width	212 mm
Depth (Min-Max)	42-42 mm
Inner depth	42 mm
For number of electric fittings	18
Mounting switching equipment	Screwing
With screws	No
Housing feed-through by break-out opening	Yes
Housing feed-through by seal membrane	No
Housing feed-through by nozzle	No
Housing feed-through by step membrane	No
For tube diameter	25 mm
Pipe locking	No
Pipe locking optional	No

Inlet from the rear	Yes
Number of inlets	14
Material	Steel
Halogen free	Yes
Surface protection	Continuously galvanised
Colour	Grey
Degree of protection (IP)	IP20
Cover model	None
Cover attachment	Other
Sealable	No
With screening	No
Air tight	No
Number of poles of the clamp	2
Clamp position fixed	Yes
Luminaire hook mounting	No
Nozzle	None
Special application	None
Vertical fixing center distance (Min-Max)	134-138 mm
Horizontal fixing center distance (Min-Max)	138-142 mm
Cable support	Not applicable
