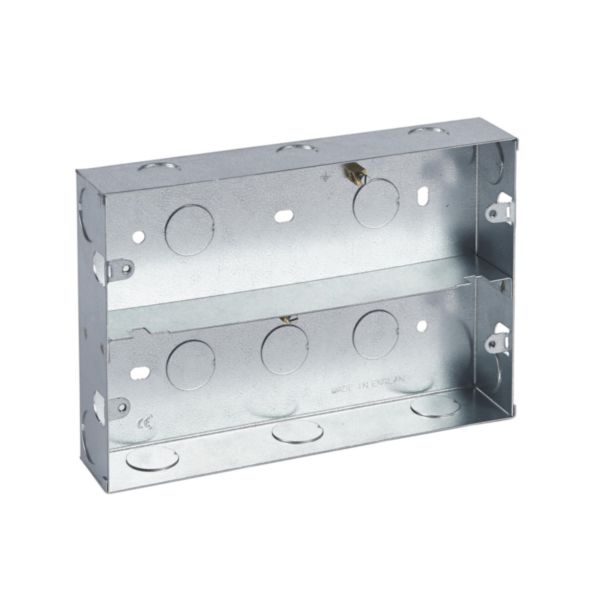

Flush-mounting box - for British standard plates and frames - 2 x 6 modules

Name: Flush-mounting box - for British standard plates and frames - 2 x 6 modules
SKU: 689028

LEGRAND

REF. 689028 EAN. 3245066890289

Compare You can only compare 4 products, you must remove 1 to add this one

Flush-mounting boxes - For British standard 6 and 8 - module plates and frames - For 2 x 6 modules - 212 x 143 x 42 mm

Mounting method	Flush-mounted
Shape	Rectangular
Construction type	Built-in installation box (device box)
Model	Single
Provided with revolving ring	No
Couplable	No
Equipped with	None
Length	212 mm
Width	143 mm
Depth (Min-Max)	42-42 mm
For number of electric fittings	12
Mounting switching equipment	Screwing
With screws	No
Number of non-adjustable device fixing lugs	4
Number of adjustable device fixing lugs	0
Housing feed-through by break-out opening	Yes
Housing feed-through by seal membrane	No
Housing feed-through by nozzle	No
Housing feed-through by step membrane	No
For tube diameter	20/25 mm
Pipe locking	No
Pipe locking optional	No
Inlet from the rear	Yes

Number of inlets	15
Number of included spouts	0
Material	Steel
Halogen free	Yes
Surface protection	Continuously galvanised
Colour	Stainless steel
Degree of protection (IP)	IP20
Cover model	None
Transparent cover	No
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Number of poles of the clamp	2
Clamp position fixed	Yes
Luminaire hook mounting	No
Nozzle	None
Special application	None
With partition panel	No
Vertical fixing center distance (Min-Max)	66-70 mm
Horizontal fixing center distance (Min-Max)	148-152 mm
Cable support	Not applicable
