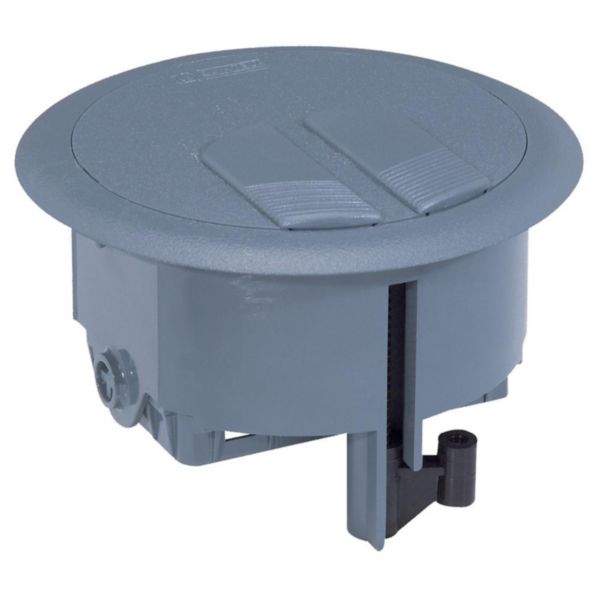

Name: Floor box 3 modules for integration - To be fitted with 1 Mosaic 2-module 2P+E socket and 1 Mosaic 1-module RJ 45 socket
SKU: 089644

Floor box 3 modules for integration - To be fitted with 1 Mosaic 2-module 2P+E socket and 1 Mosaic 1-module RJ 45 socket

Mosaic™ LEGRAND

Floor box 3 modules for integration - To be fitted with 1 Mosaic 2-module 2P+E socket and 1 Mosaic 1-module RJ 45 socket

REF. 089644 EAN. 3245060896447

Compare You can only compare 4 products, you must remove 1 to add this one

For installation in concrete floor: it is necessary to stop the hole of plastic floor boxes with adhesive tape or paperboard for example before put the concrete - Minimum height required : 80mm - Tile thickness between 6 and 28mm - Temperature of use, transport and storage: -5° à +60°

Suitable for subfloor duct	Yes
Suitable for hollow floor	No
Suitable for double floor built-in	Yes
Suitable for wet cleaning	No
Outer diameter	110 mm
Built-in diameter	90 mm
Min. built-in depth	80 mm

Floor box 3 modules for integration - To be fitted with 1 Mosaic 2-module 2P+E socket and 1 Mosaic 1-module RJ 45 socket
