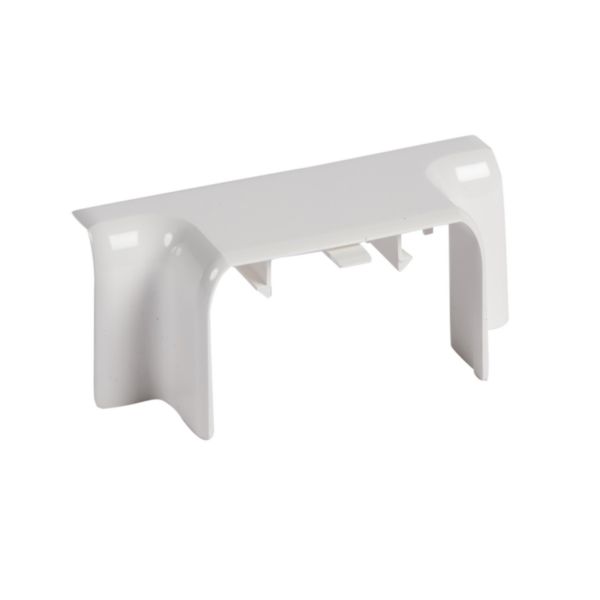

Flat junction with for snap-on trunking 50x80mm

DLP LEGRAND

Flat junction with for snap-on trunking 50x80mm

REF. 075725 EAN. 3245060757250
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Compatible with all snap - on antimicrobial trunking
  • Respect the protection index
  • White antimicrobial. Contains a silver compound to prevent the growth of bacteria on the surface.
  • Composed with a cover
  • Colour: white

The product's benefits

Installation
  • Clippes directly on the body of the trunking
Usage
  • Allows a neat and clean electrical installation finish

Technical characteristics

Width 80 mm
Width branch 80 mm
Number of covers 1
Cover width 1 45 mm
Symmetric Yes
Model Other
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment Yes
Surface protection Untreated
Colour White
RAL-number 9003
With protective foil No
With duct connector Yes
Bottom perforation No
Mounting method cover Spanned
With cable fixing clip No
Depth 50 mm

Documentation

3 documents
Technical Sheet
F01431EN-04.pdf pdf (0.7 Mo)
Technical Sheet
F01431FR-03.pdf pdf (1 Mo)
Instruction Use
LE01009AB.pdf pdf (0.6 Mo)
2 documents
Catalogue Commercial Page
ex223001_1065.pdf pdf (0.12 Mo)
Catalogue Technical Page
ex223001_1066-1067.pdf pdf (0.17 Mo)
