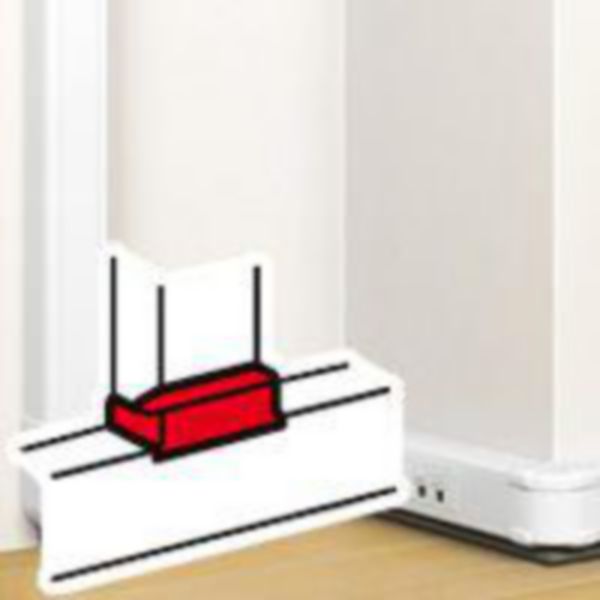

Flat junction with 80mm wide sections for snap-on trunking 50x80mm, 50x130mm, 50x145mm, 50x180mm

DLP LEGRAND

Flat junction with 80mm wide sections for snap-on trunking 50x80mm, 50x130mm, 50x145mm, 50x180mm

REF. 075671 EAN. 3245060756710

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Product characteristics

Compatible with snap - on trunking cat.no : 075601, 011020, 075603, 011022, 075604, 075606 or 011024
Respect the protection index
Colour: white

Technical characteristics

Width	53 mm
Width branch	80 mm
Number of covers	1
Cover width 1	45 mm
Symmetric	Yes
Model	Other
Material	Plastic
Material quality	Other
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Colour	White

RAL-number	9003
With protective foil	No
With duct connector	Yes
Bottom perforation	No
Mounting method cover	Spanned
With cable fixing clip	No
Degree of protection (IP)	Other
degree of impact strength (IK)	Other
Operating / setting temperature	15-60 °C
Height	122 mm
Depth	50 mm
Storage temperature	-5-60 °C
