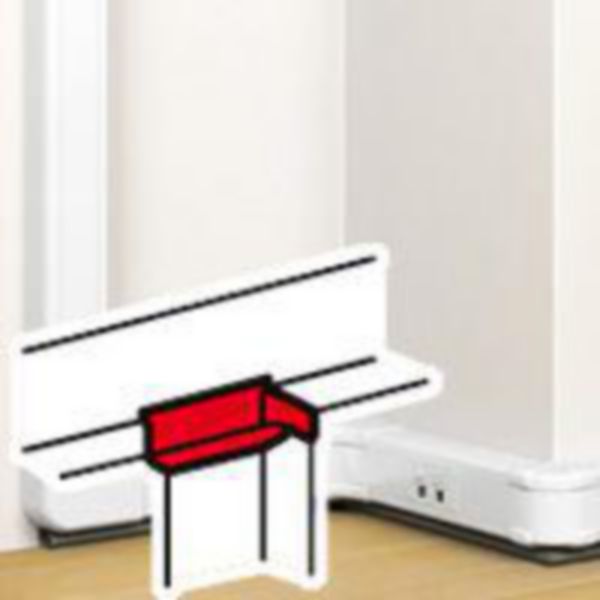

Flat junction with 80mm wide sections for snap-on trunking 50x105mm and 50x145mm
DLP
LEGRAND
Flat junction with 80mm wide sections for snap-on trunking 50x105mm and 50x145mm
REF. 075672
EAN.
3245060756727
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Width | 53 mm |
|---|---|
| Width branch | 80 mm |
| Number of covers | 1 |
| Cover width 1 | 45 mm |
| Symmetric | Yes |
| Model | Other |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Colour | White |
| RAL-number | 9003 |
|---|---|
| With protective foil | No |
| With duct connector | Yes |
| Bottom perforation | No |
| Mounting method cover | Spanned |
| With cable fixing clip | No |
| Degree of protection (IP) | Other |
| Degree of impact strength (IK) | Other |
| Operating / setting temperature | 15-60 °C |
| Height | 122 mm |
| Depth | 50 mm |
| Storage temperature | -5-60 °C |
Documentation
3 documents
Technical Sheet
Technical Sheet
Instruction Use
3 documents
Catalogue Technical Page
Catalogue Commercial Page
Catalogue Commercial Page
