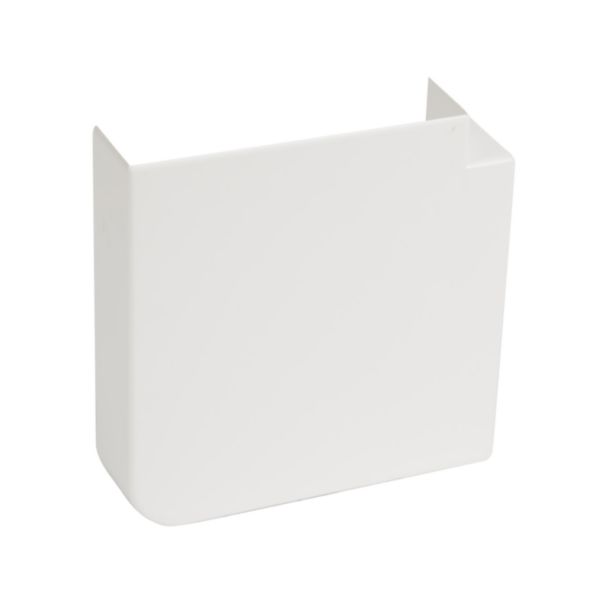

Flat angle for Universal DLP-S trunking 190x50mm

DLP-S LEGRAND

Flat angle for Universal DLP-S trunking 190x50mm

REF. 638053 EAN. 3245066380537

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation

Product characteristics

Flat angle 90 degrees
Delivered with an adaptator allowing to fixe the accessory on the trunking
Respect the protection index
Improvement of aesthetics (covering of the cut)
Colour: white

Recommendation / Restriction

Can not be used outside

Technical characteristics

Number of covers	0
Direction	Rising/descending
Symmetric	Yes
Model	Base unit and cover
Angle	90-90 °
Material	Plastic
Material quality	Other
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated

Colour	White
RAL-number	9010
With protective foil	No
With duct connector	No
Bottom perforation	No
Mounting method cover	Spanned
With cable fixing clip	No
Width	190 mm
Depth	50 mm

Documentation

2 documents

Select all

Technical Sheet

F01198FR-07.pdf pdf (3.26 Mo)

Technical Sheet

F01198EN-08.pdf pdf (3.25 Mo)

2 documents

Select all

Catalogue Technical Page

ex223001_1088.pdf pdf (0.07 Mo)

Catalogue Commercial Page

ex223001_1087.pdf pdf (0.1 Mo)

1 document

Select all

PEP

LGRP-01519-V01.01-EN.pdf pdf (0.59 Mo)
