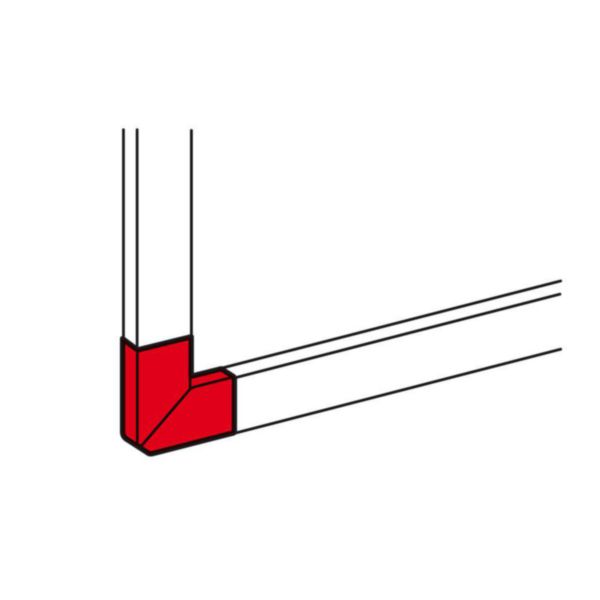

Flat angle for universal Aluminium trunking 50x105mm with cover width 65mm

DLP LEGRAND

Flat angle for universal Aluminium trunking 50x105mm with cover width 65mm

REF. 011242 EAN. 3245060112424
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Flat angle 90 degrees
  • Delivered with a connector board and cover
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Colour: grey aluminium

The product's benefits

Installation
  • Clippes directly on the body of the trunking (with or without division or separation partition)
Usage
  • Keeps the distribution of the different currents

Technical characteristics

Number of covers 0
Direction Rising/descending
Symmetric Yes
Model Base unit and cover
Angle (Min-Max) 90-90 °
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Other
Colour Aluminium
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Spanned
With cable fixing clip No
Width 105 mm
Depth 50 mm
