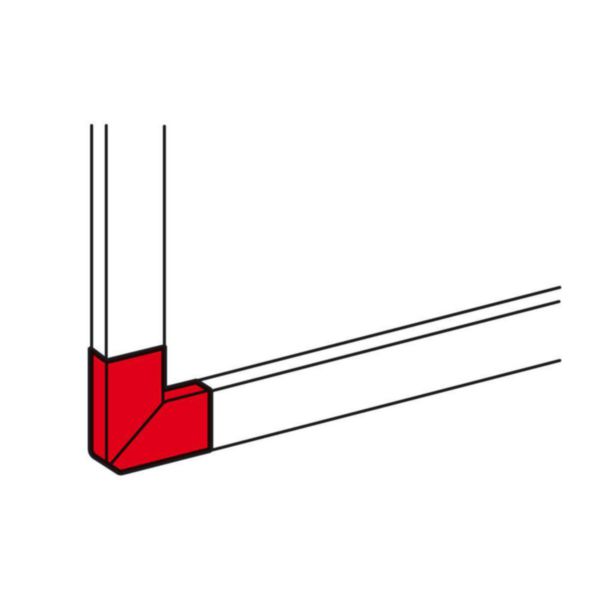

Flat angle for DLP universal trunking 35x105mm

DLP LEGRAND

Flat angle for DLP universal trunking 35x105mm

REF. 010784 EAN. 3245060107840
Cable routing accessory for one-piece trunking, this flat angle 90° for DLP 35x105mm clips directly onto the duct body, maintaining IP40 and IK07 ratings, with a two-piece base-and-cover design for a clean, aesthetic junction.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Cable routing accessory for one-piece trunking, this flat angle 90° for DLP 35x105mm clips directly onto the duct body, maintaining IP40 and IK07 ratings, with a two-piece base-and-cover design for a clean, aesthetic junction.

Product characteristics
  • Flat angle 90 degrees
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Composed with 2 elements: one connector board and one cover
  • Colour: white

The product's benefits

Installation
  • Clips directly onto the body of the trunking
Usage
  • Allows a neat and clean electrical installation finish

Technical characteristics

Number of covers 0
Direction Rising/descending
Symmetric Yes
Model Base unit and cover
Angle (Min-Max) 90-90 °
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Colour White
RAL-number 9003
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Spanned
With cable fixing clip No
Degree of protection (IP) IP40
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -5-60 °C
Width 160 mm
Height 40 mm
Depth 35 mm
Storage temperature (Min-Max) -25-60 °C

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.628
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
