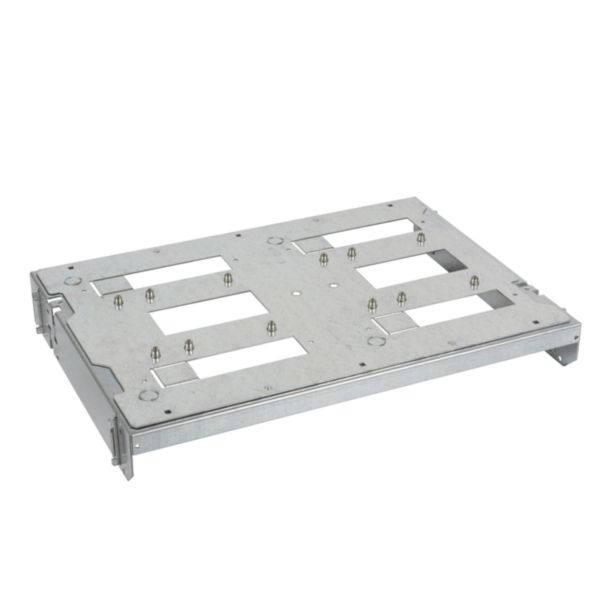

Fixing automatic transfer switch XL³ 4000 - 2 DPX³ fixed/draw-out devices - vertical

Name: Fixing automatic transfer switch XL³ 4000 - 2 DPX³ fixed/draw-out devices - vertical
SKU: 021066

LEGRAND

REF. 021066 EAN. 3414970756831

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 630 plug - in, draw - out version or automatic transfer switches - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles
Fixing automatic transfer switches DPX³ 630devices in vertical position - For 2 fixed or draw - out devices

Model	Other
Suitable for enclosure building width	725 mm
Width	600 mm

Height	600 mm
Material	Metal

2 documents

Select all

Instruction Use

F3824D-01.pdf pdf (1.68 Mo)

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0388.pdf pdf (0.07 Mo)

Catalogue Technical Page

ex223001_0390.pdf pdf (0.44 Mo)
