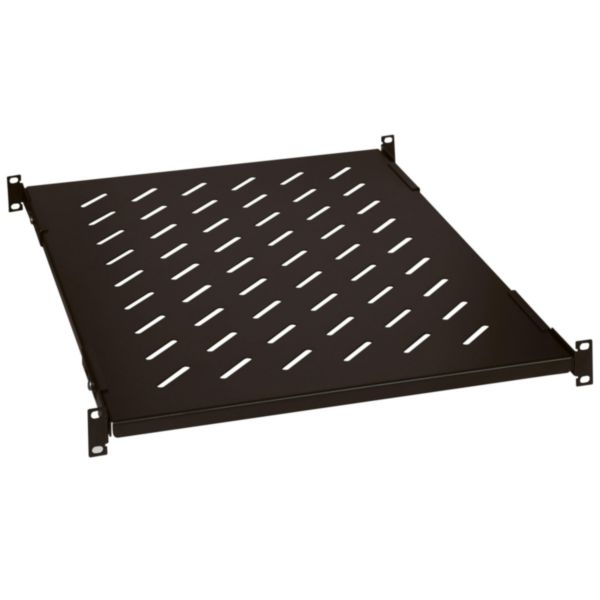

Fixed shelf Linkeo 1U depth 625mm screw fixing on 4 x 19 inches uprights

Linkeo LEGRAND

Fixed shelf Linkeo 1U depth 625mm screw fixing on 4 x 19 inches uprights

REF. 646506 EAN. 3245066465067
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Height 1U
  • Depth 625mm x width 440mm.
  • Screw fixing (supplied with screws and cage nuts with pins)
  • Shelf made of 0.8 mm thick steel
  • Black RAL 9005
Recommendation / Restriction
  • Maximum load : 50kg

The product's benefits

Installation
  • Can be adjusted in 25 mm steps to the depth of the 19 inches uprights
Usage
  • Shelf is perfored (50 x 7 mm oblong perforations) for a better internal ventilation, and possibility of clamping using cable ties.

Technical characteristics

Model Supporting plate for monitor
Suitable for enclosure building width 482.6 mm
Suitable for enclosure building height 44.45 mm
Suitable for enclosure building depth 800 mm
Width 486 mm
Height 44 mm
Depth 625 mm
Material Metal
Colour Black
RAL-number 9005
Halogen free Yes

Documentation

3 documents
Technical Sheet
F02420EN-01.pdf pdf (2.28 Mo)
Technical Sheet
F02421FR-01.pdf pdf (2.29 Mo)
Technical Sheet
F02420FR-01.pdf pdf (2.28 Mo)
3 documents
Catalogue Technical Page
ex223001_0951.pdf pdf (0.07 Mo)
Catalogue Commercial Page
ex223001_0946.pdf pdf (0.09 Mo)
Catalogue Commercial Page
ex223001_0944.pdf pdf (0.14 Mo)
