Fixe flat angle for snap-on trunking 50x180mm

Name: Fixe flat angle for snap-on trunking 50x180mm
SKU: 075646

DLP LEGRAND

Fixe flat angle for snap-on trunking 50x180mm

REF. 075646 EAN. 3245060756468

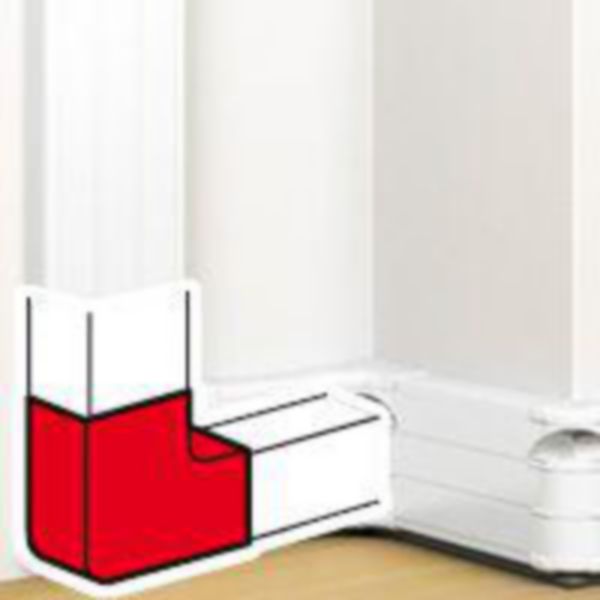

Cable management accessory for Mosaic trunking with direct clipping, this 90° flat angle for 50x180 snap-on trunking maintains the protection index and improves aesthetics by covering cuts for a neat finish

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Description

Product characteristics

Flat angle 90 degrees
Respect the protection index
Improvement of aesthetics (covering of the cut)
Composed with 2 elements: one connector board and one cover
Colour: white

Technical characteristics

Number of covers	0
Direction	Rising/descending
Symmetric	Yes
Model	Base unit and cover
Angle (Min-Max)	90-90 °
Material	Plastic
Material quality	Other
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Colour	White
RAL-number	9003

With protective foil	No
With duct connector	No
Bottom perforation	No
Mounting method cover	Spanned
With cable fixing clip	No
Degree of protection (IP)	Other
degree of impact strength (IK)	Other
Operating / setting temperature (Min-Max)	15-60 °C
Width	235 mm
Height	54 mm
Depth	50 mm
Storage temperature (Min-Max)	-5-60 °C
