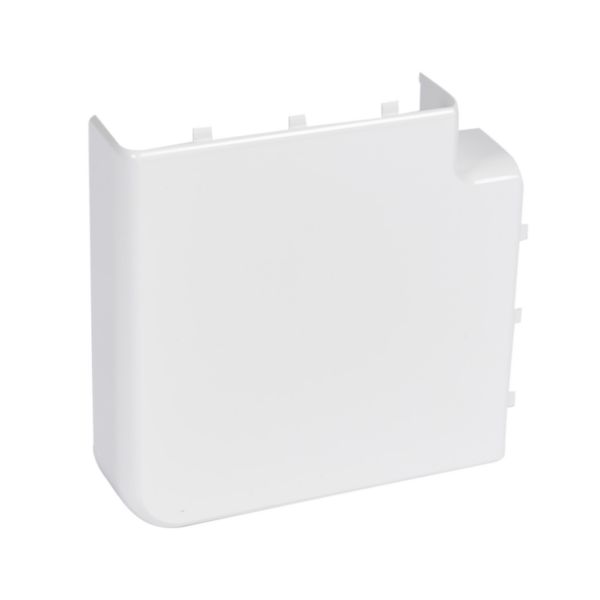

Fixe flat angle for snap-on antimicrobial trunking 50x180mm

DLP LEGRAND

Fixe flat angle for snap-on antimicrobial trunking 50x180mm

REF. 075724 EAN. 3245060757243
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Respect the protection index
  • Flat angle 90 degrees
  • White antimicrobial. Contains a silver compound to prevent the growth of bacteria on the surface.
  • Composed with 2 elements: one connector board and one cover
  • Colour: white

The product's benefits

Installation
  • Clippes directly on the body of the trunking (with or whitout separation partition)
Usage
  • Allows a neat and clean electrical installation finish

Technical characteristics

Number of covers 0
Direction Rising/descending
Symmetric Yes
Model Base unit and cover
Angle 90-90 °
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment Yes
Surface protection Other
Colour White
RAL-number 9003
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Spanned
With cable fixing clip No
Width 180 mm
Depth 50 mm

Documentation

3 documents
Technical Sheet
F01431EN-04.pdf pdf (0.7 Mo)
Technical Sheet
F01431FR-03.pdf pdf (1 Mo)
Instruction Use
LE01544AB.pdf pdf (0.37 Mo)
2 documents
Catalogue Commercial Page
ex223001_1065.pdf pdf (0.12 Mo)
Catalogue Technical Page
ex223001_1066-1067.pdf pdf (0.17 Mo)
