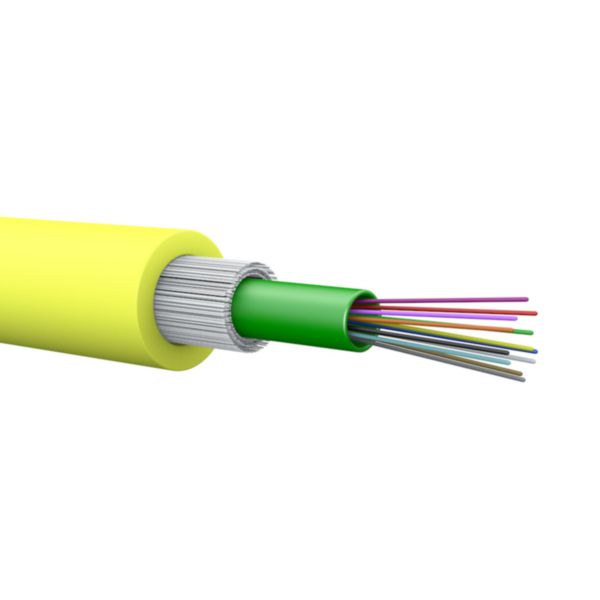

Fiber Optic Cable OS2 Loose Tube 12 Cores Indoor/Outdoor LSZH Euroclass Cca s1a d1 a1

LCS³ LEGRAND

Fiber Optic Cable OS2 Loose Tube 12 Cores Indoor/Outdoor LSZH Euroclass Cca s1a d1 a1

REF. 032526 EAN. 3414971744677

The Legrand Indoor/Outdoor fiber optic cable is easy to handle and resilient to hardships. It can be used for LAN and WAN backbones. It is equally suited for installation in ducts and on trays. It has an Euroclass fire safety rating.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Legrand Indoor/Outdoor fiber optic cable is easy to handle and resilient to hardships. It can be used for LAN and WAN backbones. It is equally suited for installation in ducts and on trays. It has an Euroclass fire safety rating.

Product characteristics
  • Single-mode OS2 fibre optic cable. Core/Cladding is 9/125 μm single-mode.
  • Loose Tube 2mm UV stabilised Sheath.Yellow cable sheath.
  • 12 Cores
  • Low Smoke Zero Halogen materials that emit limited smoke and no halogen when exposed to high sources of heat.
  • Construction Projects Regulation (CPR) classification regarding cable characteristics for flame propagation and heat release : Euroclass Cca s1a d1 a1
Recommendation / Restriction
  • Cable Technical Specifications (ISO 11801 2nd edition, EN 50173-1:2002, IEC 60794-1). Fibres Technical Specifications [IEC 60793-2-50 category B.1.3, EN 60793-2-50: class B1.3, ITU Recommendation G.652.D - the other ITU designations A, B and C are also fulfilled, EN 50 173-1:2007 cat. OS2 also OS1 requirements are fulfilled, ISO/IEC 11801:2002, cat. OS1, ISO/IEC 24702:2006, cat. OS2 also OS1 requirements are fulfilled, IEEE 802.3 - 2002 incl. 802.3ae]

The product's benefits

Installation
  • This cable can be used for LAN and WAN backbones, telecom access lines, fibre to business and fibre to the building or the home connections. It is equally suited for installation in ducts and on trays. This cable features a high tensile strength and a degree of rodent protection effective in many cases. OS2 and higher Fiber Optic Cable are typically deployed over long distances, where light can be carried in a single path allowing high information capacity and low attenuation.
Usage
  • Optical fiber cables offer a higher bandwidth than copper (10 to 12 copper cable for 1 optical fiber cable), and cover a higher distance for the same bandwidth than copper (for a 10 Gigabits bandwidth 90m for copper cable vs 10Km for an OS2 optical fiber cable). Also since optical fiber carries light instead of electricity (as in copper cable) it's insensible to lighting strikes or electrical faults. It does not corrode or rust. As a result fiber reduces maintenance cost and has a proven record of reliability in the field.
Avantages
  • Signal light intensity decreases over a given distance. Legrand optical fibers are amongst of the best in the market to keep that attenuation at a minimum. At 1550nm attenuation is inferior at 0.25 dB/km.
  • When a fiber is bent or coiled, the light prefers to carry on in a straight line so tends to want to shoot right out the cladding at a bend. Legrand optical fibers are amongst of the best in the market to keep those bent induced losses to a minimum. For a 100 turns on a 50 mm diameter mandrel at 1310 and 1550 nm bending loss is inferior to 0.05dB.

Technical characteristics

Number of fibres 12
Type of tube Loose tube
Number of fibres per tube 12
Fibre type Single mode 9/125
Category OS2
With strain relief No
With rodent protection No
Material outer sheath Other
Specification material outer sheath Other
Colour outer sheath Yellow
Longitudinal water blocking cable Yes
Radial water blocking cable Yes
Cable metal free Yes
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R) No
Flame retardant according to IEC 60332-3-22 (Cat A) No
Flame retardant according to IEC 60332-3-23 (Cat B) No
Flame retardant according to IEC 60332-3-24 (Cat C) Yes
Flame retardant according to IEC 60332-3-25 (Cat D) No
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-1 No
Halogen free according to EN IEC 60754-2 Yes
Halogen free according to EN IEC 60754-3 No
Reaction-to-fire according to EN 13501-6: Class Cca
Reaction-to-fire according to EN 13501-6: Smoke production s1a
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D1
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 No
Circuit integrity according to IEC 60331-25 None
Circuit integrity according to EN 50200 None
Oil resistant according to EN IEC 60811-404 No
Resistant to chemicals No
Cable width approximate 9.4 mm
Cable height approximate 9.4 mm
Outer diameter approximate 9.4 mm
Min. permitted bending radius, stationary application/permanent installation 100 mm
Max. tensile strength during installation 3 kN
Suitable for underground installation No
Blow in No
Weight 73 kg/km
Fibre optic cable colour coding according to S-12 Skanova standard No
Operating / setting temperature -40-70 °C
Storage temperature -40-70 °C
RAL-number 1018
