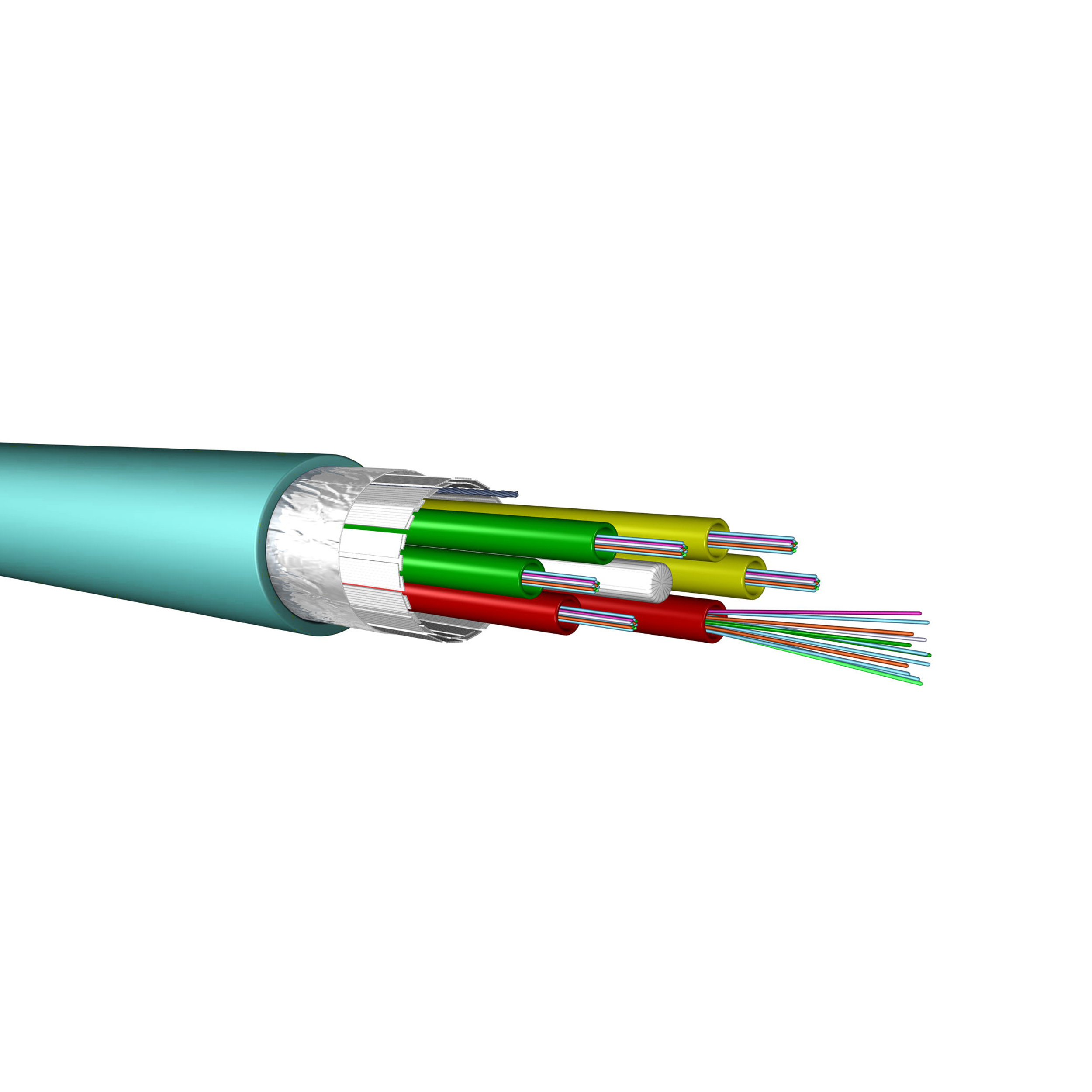

LCS³ - Fiber Optic Cable OM3 loose tube 48 cores indoor/outdoor LSZH - Multi mode 50/125 - Euroclass Dca s2 d2 a1 - Diameter 12.2mm

LCS3 Legrand

LCS³ - Fiber Optic Cable OM3 loose tube 48 cores indoor/outdoor LSZH - Multi mode 50/125 - Euroclass Dca s2 d2 a1 - Diameter 12.2mm

REF. 032489 EAN. 3414971206236

The Legrand Indoor/Outdoor fiber optic cable features OM3 multimode 50/125µm fibers, loose tube design with 48 cores, and LSZH construction. Euroclass Dca s2 d2 a1 fire rating ensures safe LAN/WAN backbone installation.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Legrand Indoor/Outdoor fiber optic cable features OM3 multimode 50/125µm fibers, loose tube design with 48 cores, and LSZH construction. Euroclass Dca s2 d2 a1 fire rating ensures safe LAN/WAN backbone installation.

Product characteristics
  • OM3 multimode fiber optic cable with 50/125µm core/cladding enables high-speed data transmission for LAN and WAN backbones.
  • Loose tube construction with 48 fibers (12 fibers per tube), 12.2mm outer diameter, and 5kN max tensile strength for robust installation.
  • Cable is suitable for indoor/outdoor use, features longitudinal and radial water blocking, and operates from -40°C to 70°C.
  • Low Smoke Zero Halogen (LSZH) sheath, Euroclass Dca-s2,d2,a1 fire rating, flame retardant per IEC 60332-1-2 and IEC 60332-3-24.
  • Turquoise (RAL 6027) outer sheath for easy identification; cable is metal-free and round geometry for flexible routing.
Recommendation / Restriction
  • Cable technical specifications (ISO 11801 2nd edition, EN 50173-1:2002, IEC 60794-1). Fibres technical specifications [IEC 60793-2-10 category A1a.2, EN 60793-2-10: type A1a.2, ITU Recommendation G.651, TIA/EIA-492 aaac, EN 50 173:2002, category OM 3, ISO/IEC 11801:2002, category OM 3, ieee 802.3 to 2002 incl. Amendment 802.3ae to 2002.]

The product's benefits

Installation
  • This cable can be used for LAN and WAN backbones, telecom access lines, fibre to business and fibre to the building or the homme connections. It is equally suited for installation in ducts and on trays. This cable features a high tensile strength and a degree of rodent protection effective in many cases. OM3 and higher fiber optic cable are typically deployed in data center, LAN, and storage area network.
Usage
  • Optical fiber cables offer a higher bandwidth than copper (10 to 12 copper cable for 1 optical fiber cable), and cover a higher distance for the same bandwidth than copper (for a 10 Gigabits bandwidth 90m for copper cable vs 300m for an OM3 optical fiber cable). Also since optical fiber carries light instead of electricity (as in copper cable) it insensible to lighting strikes or electrical faults. It does not corrode or rust. As a result fiber reduces maintenance cost and has a proven record of reliability in the field.
Avantages
  • Signal light intensity decreases over a given distance. Legrand optical fibers are amongst of the best in the market to keep that attenuation at a minimum. At 850nm attenuation is inferior 2.5dB/km.
  • When a fiber is bent or coiled, the light prefers to carry on in a straight line so tends to want to shoot right out the cladding at a bend. Legrand optical fibers are amongst of the best in the market to keep those bent induced losses to a minimum. If R is diameter 15mm for a 850nm fiber, bending loss is inferior to 0.1dB.

Technical characteristics

Number of fibres 48
Type of tube Loose tube
Number of fibres per tube 12
Fibre type Multi mode 50/125
Category OM3
With strain relief No
With rodent protection No
Material outer sheath Other
Specification material outer sheath Other
Colour outer sheath Turquoise
Longitudinal water blocking cable Yes
Radial water blocking cable Yes
Cable metal free Yes
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R) No
Flame retardant according to IEC 60332-3-22 (Cat A) No
Flame retardant according to IEC 60332-3-23 (Cat B) No
Flame retardant according to IEC 60332-3-24 (Cat C) Yes
Flame retardant according to IEC 60332-3-25 (Cat D) No
Low smoke according to EN IEC 61034-2 Yes
Halogen free according to EN IEC 60754-1 No
Halogen free according to EN IEC 60754-2 Yes
Halogen free according to EN IEC 60754-3 No
Reaction-to-fire according to EN 13501-6: Class Dca
Reaction-to-fire according to EN 13501-6: Smoke production S2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles D2
Reaction-to-fire according to EN 13501-6: Acidity a1
Circuit integrity according to IEC 60331-23 No
Circuit integrity according to IEC 60331-25 None
Circuit integrity according to EN 50200 None
Oil resistant according to EN IEC 60811-404 No
Resistant to chemicals No
Cable width approximate 12.2 mm
Cable height approximate 12.2 mm
Outer diameter approximate 12.2 mm
Min. permitted bending radius, stationary application/permanent installation 122 mm
Max. tensile strength during installation 5 kN
Suitable for underground installation No
Blow in No
Weight 155 kg/km
Fibre optic cable colour coding according to S-12 Skanova standard No
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -40-70 °C
RAL-number 6027
