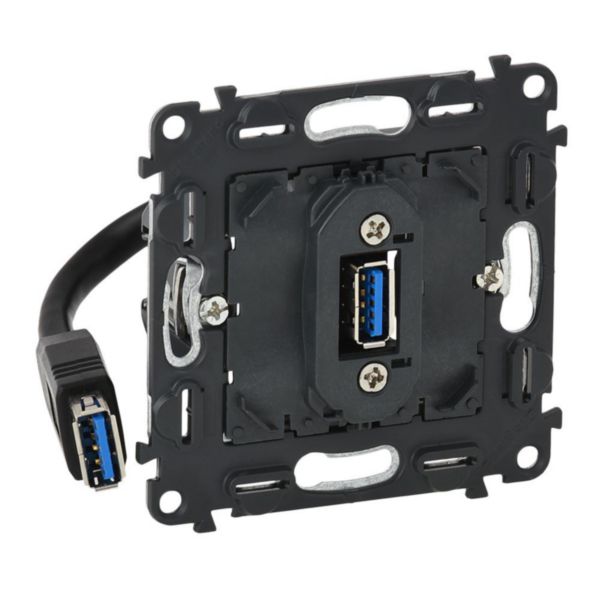

Female USB data socket Valena In'Matic - for data transfer

Legrand

Female USB data socket Valena In'Matic - for data transfer

REF. 753082 EAN. 3414970464996
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Assembly arrangement Basic element
Utilization USB
Support ring No
With dust cover Yes
With hinged lid No
Outlet direction Straight
Imprintable label Without indication field
With imprint No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface finishing Matt
Transparent No
Type of fastening Mounting with screw
Number of modules (module system) 2
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
Suitable for degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-35 °C

Documentation

3 documents
Technical Sheet
F01948EN-01.pdf pdf (1.51 Mo)
Instruction Use
LE07192AA.pdf pdf (1.04 Mo)
Technical Sheet
F01948FR-01.pdf pdf (1.51 Mo)
