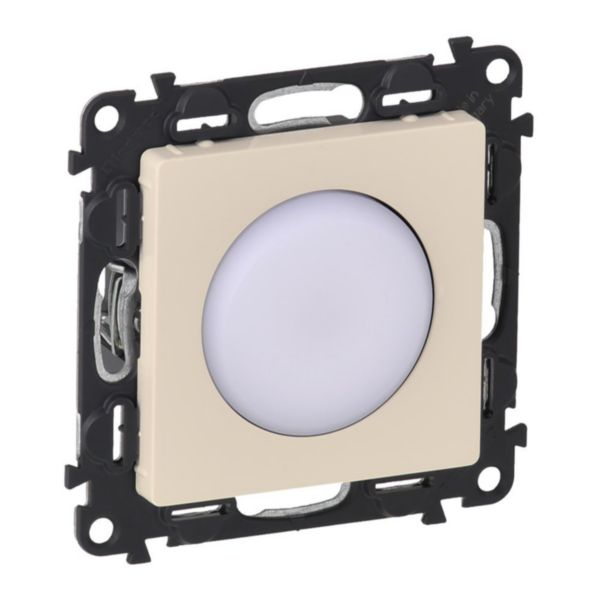

Extractible emergency lamp Valena Life - ivory

Name: Extractible emergency lamp Valena Life - ivory
SKU: 752169

Valena Life Legrand

REF. 752169 EAN. 3414970453747

Compare You can only compare 4 products, you must remove 1 to add this one

Valena™ IN'MATIC mechanisms - motion sensors, extractible emergency lamp, roller blind control, keycard switches- Valena In'Matic mechanisms are supplied with metal support, for claw or screw mounting- To be equipped with Valena Life or Valena Allure cover plates and plates- Supplied with mounted dust protection transparent shield- Packaged in boxes
Extractible emergency lamps- Supplied with cover plate- Screw terminals- The lamp automatically turns on in case of power failure- Push&pull system to extract the lamp from the charging base: this turns on the lamp which can then be used as a torch (ON‑OFF)- Working reserve: 2 hours- Push button on the lamp to increase the light intensity - Ivory Valena Life

Mounting method	Built-in
Function	Escape route lighting
Suitable for labelling type	Other
With pictogram	No
Suitable for standby switching	Yes
With remote switch connection	No
Emergency function monitoring system	Other
Emergency power supply system	Peripheral (individual battery)
Battery technology	NiMH
Lamp type	LED not exchangeable
With light source	Yes
Lamp holder	Other
Housing material	Plastic
Housing colour	White
Material cover	Plastic, opal
Voltage type	AC
Nominal voltage (Min-Max)	230-230 V
Light distributor	Diffuser lens/optic/panel
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Protection class according to IEC 61140	II
Luminous flux in emergency mode	19 lm
Rated luminous flux according to IEC 62722-2- 1 (Min-Max)	19-19 lm
Luminous flux in standby mode	5 lm

Recognition distance	0 m
Nominal operation time (Min-Max)	1-1 h
Width	75 mm
Height/depth	44 mm
Length	75 mm
Built-in height/depth	30.5 mm
Type of wiring	Ending
Connection type	Screw connection
Connectable conductor cross section (Min-Max)	1.5-1.5 mm²
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-5-35 °C
Frequency (Min-Max)	50-60 Hz
Halogen free	Yes
With complemantary luminous signal	No
Contains Batteries and/or Accumulator	Yes
Battery ou Accumulator (Pack1)	Accumulator (rechargeable)
Element Composition (Pack1)	Nickel metal hydride
Number of Pack 1	1
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	10 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	No
