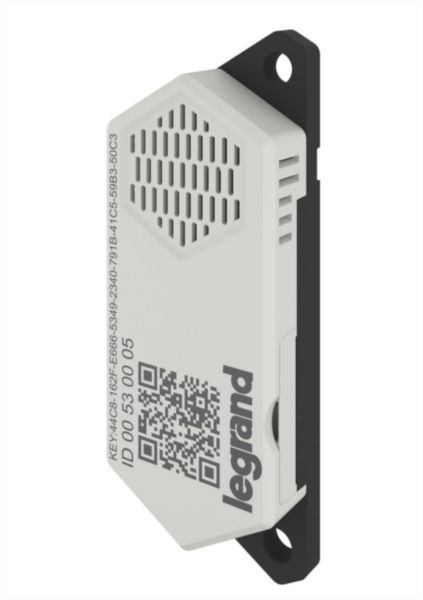

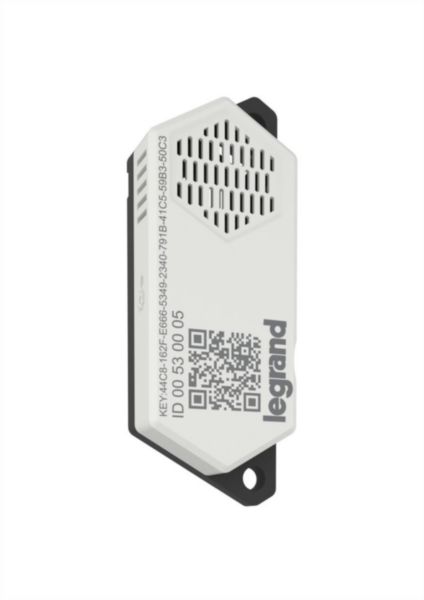

Name: Environmental wireless temperature and humidity sensor
SKU: 646003

Environmental wireless temperature and humidity sensor

Linkeo LEGRAND

Environmental wireless temperature and humidity sensor

REF. 646003 EAN. 3414971985254

Compare You can only compare 4 products, you must remove 1 to add this one

To measure temperature from 5°C to 55°C and humidity from 0% RH to 100% RH.
Energy - friendly radio communications with intelligent PDUs powered by 2.4 GHz Zigbee GreenPower Technology
Minimum 5 years battery life (Lithium battery CR2450 3V)

Highly accurate environment monitoring (+/- 1% temperature/humidity accuracy) for an easy detection of hot spots and risky environmental conditions.It helps to optimize rack airflow delivery and to reduce cooling costs.

Scope of application	Other
With mounting material	No
Suitable for wall mounting	No
Suitable for ceiling mounting	No
Suitable for duct mounting	No
Suitable for tube mounting	No
Suitable for air	Yes
Suitable for liquids	No
Suitable for gases	No
With housing	Yes
Cover attachment	Other
Sensor element inside housing	Yes
Sensor element outside housing	No
Fixed cable to sensor	No
Material element	Other
Technology	Other
Measurement of CO2	No
Measurement of VOC	No
Measurement of relative air humidity	Yes
Measurement of absolute air humidity	Yes
Enthalpy measurement	No
Measurement of dewpoint	No
Particulate matter measurement (PM)	No
Temperature measuring range (Min-Max)	5-55 °C
Measuring range relative air humidity (Min-Max)	0-100 %
Offset setting possible	No
Trend representation	No
Error registration possible	No

Sensor type	Other
Tolerance	1 %
Potentiometer with adjustment knob	No
Supporting protocol for BACnet	No
Supporting protocol for Modbus	No
Supporting protocol for MP (multi point)	No
LoRa technology	No
NFC (Near Field Communication)	No
Bluetooth	No
Wi-Fi-compatible	No
Standby push button	No
Wireless	Yes
With display	No
Type of display	Other
Type of power supply	Battery
Type of electric connection	Other
Rated supply voltage AC (Min-Max)	3-3 V
With reverse polarity protection	No
Explosion-proof	No
Degree of protection (IP)	IP2X
Housing height	80.5 mm
Housing width	24 mm
Housing depth	16 mm
Housing colour	White
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No

3 documents

Select all

Technical Sheet

FT-646003-04EN-01.pdf pdf (0.31 Mo)

Technical Sheet

FT-646003-04FR-01.pdf pdf (0.31 Mo)

Instruction Use

LE13712AB.pdf pdf (2.84 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_1041.pdf pdf (0.09 Mo)

2 documents

Select all

Agreement

ZigBee-ZIG21017GPF20046-24 (0.2 Mo)

Agreement

Decl. UE RED-O0353B (0.47 Mo)

Environmental wireless temperature and humidity sensor
