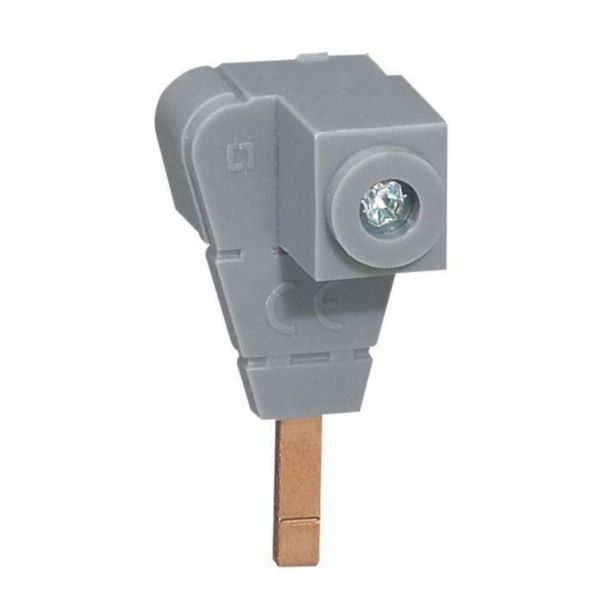

Entry terminal - for all supply busbars - cross section 6 to 35 mm²
LEGRAND
Entry terminal - for all supply busbars - cross section 6 to 35 mm²
REF. 404906
EAN.
3245064049061
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of poles | 1 |
|---|---|
| Nominal current | 125 A |
| Connection type | Screwing |
| Mounting method | Other |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 6-35 mm² |
| Conductor cross section, output | 10-10 mm² |
| Conductor cross section, input AWG | 2-9 |
| Contact safe | Yes |
|---|---|
| Height | 46 mm |
| Width | 21.5 mm |
| Depth | 26 mm |
| number of rows | 1 |
| degree of impact strength (IK) | IK00 |
| Degree of protection (IP) | IP00 |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Nominal voltage | 230-400 V |
| Halogen free | No |
| Type of distribution blocks | Multifunction |
| Terminals capacity | 6-35 mm² |
| Label space/information surface | No |
