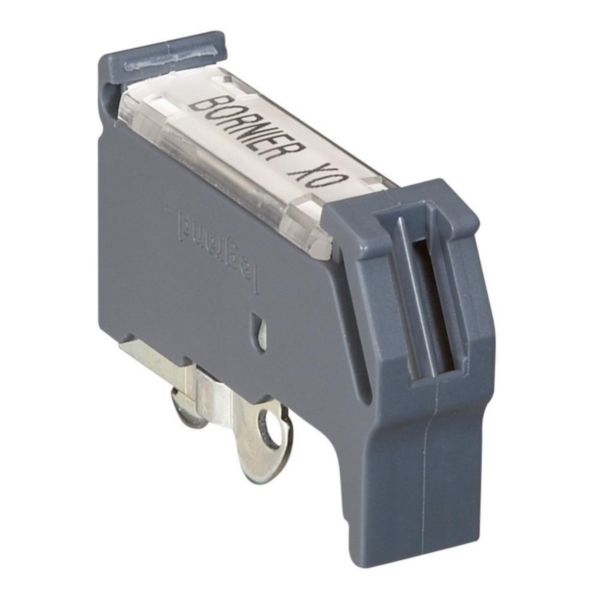

End stop for Viking3 terminal blocks with automatic 12mm pitch

Viking 3 LEGRAND

End stop for Viking3 terminal blocks with automatic 12mm pitch

REF. 037513 EAN. 3245060375133
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • For symmetrical rail depth 15 mm and symmetrical EN 60715 rail depth 7.5 mm and 15 mm
  • Accepts the sticker holder ref. 0 395 99
  • Can be used as an end wall for 1 - in/1 - outlet screw blocks with 5, 6, 8 and 10 mm pitch.
Recommendation / Restriction
  • Installation recommended for electrical connection in industrial and tertiary cabinets and enclosures.

The product's benefits

Installation
  • Screwless mounting
Usage
  • Compatible with Viking 3 terminal blocks

Technical characteristics

Colour Grey
Mounting method DIN rail (top hat rail)/G-rail TH35/G32
Type of latching Screwable
Material Plastic
Inflammability class of insulation material according to UL94 V2
Width 12 mm
Height 38.8 mm
Depth 49.7 mm

Documentation

2 documents
Technical Sheet
F00903EN-00.pdf pdf (1.66 Mo)
Technical Sheet
F00903FR-00.pdf pdf (1.23 Mo)
2 documents
Catalogue Technical Page
ex223001_0469.pdf pdf (0.06 Mo)
Catalogue Commercial Page
ex223001_0462.pdf pdf (0.14 Mo)
1 document
3D Autocad
037513.dwg dwg (0.07 Mo)
