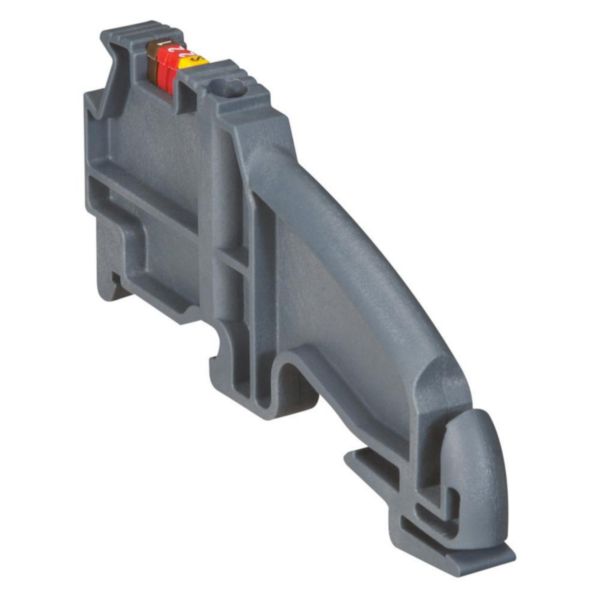

End stop for Viking3 terminal blocks with automatic 10mm pitch

Viking 3 LEGRAND

End stop for Viking3 terminal blocks with automatic 10mm pitch

REF. 037512 EAN. 3245060375126
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • For symmetrical rail depth 15 mm and symmetrical EN 60715 rail depth 7.5 mm and 15 mm
  • Accepts the sticker holder ref. 0 395 98
  • Can be used as an end wall for 1 - in/1 - outlet screw blocks with 5, 6, 8 and 10 mm pitch.
Recommendation / Restriction
  • Installation recommended for electrical connection in industrial and tertiary cabinets and enclosures.

The product's benefits

Installation
  • Screwless mounting
Usage

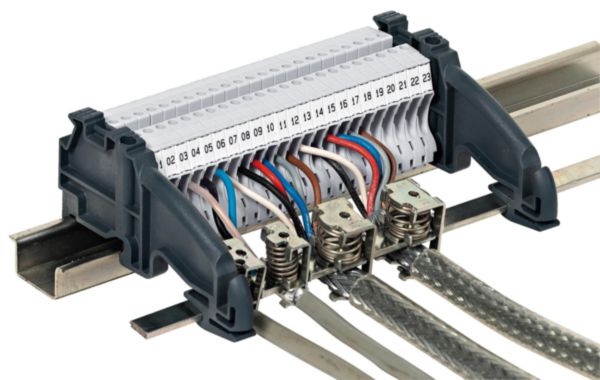

  • Compatible with Viking 3 terminal blocks

Technical characteristics

Colour Grey
Mounting method DIN rail (top hat rail) 35 mm
Type of latching Screwable
Material Plastic
Inflammability class of insulation material according to UL94 V2
Width 10 mm
Height 51.5 mm
Depth 114 mm

Documentation

2 documents
Technical Sheet
F00903EN-00.pdf pdf (1.66 Mo)
Technical Sheet
F00903FR-00.pdf pdf (1.23 Mo)
2 documents
Catalogue Technical Page
ex223001_0469.pdf pdf (0.06 Mo)
Catalogue Commercial Page
ex223001_0462.pdf pdf (0.14 Mo)
