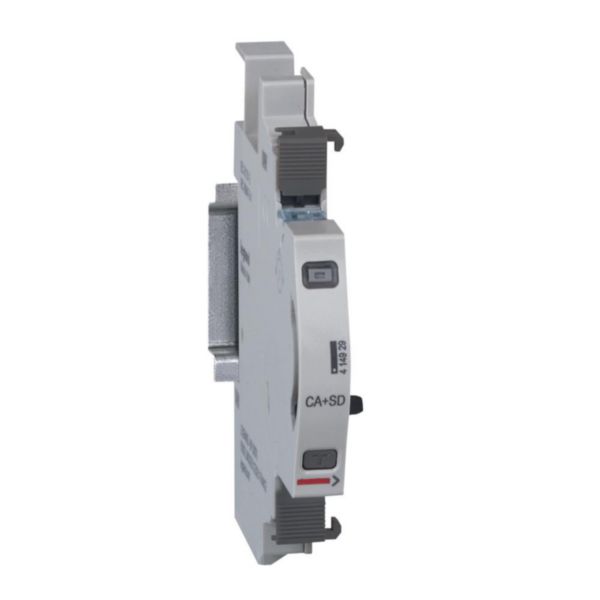

Name: EMS CX ³ CA and SD signaling auxiliary module
SKU: 414929

EMS CX ³ CA and SD signaling auxiliary module

EMS CX³ LEGRAND

EMS CX ³ CA and SD signaling auxiliary module

REF. 414929 EAN. 3414970805577

Compare You can only compare 4 products, you must remove 1 to add this one

CX³ energy management system - Conform to IEC/EN 61131 - 2 (Programmable controllers) - CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely - All the modules of the system are equipped with two specific communication ports : one at the backside (for communication rail) and one underneath (for communication patch cords) - Power supply with specific module Cat.No 4 149 45 - Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E - Catalogue (giving also access to a 30 - day trial version of Energy Management Software Cat.No 4 149 38/39)
State reporting modules Auxiliary + fault signalling contact - Enables upstream busbar connection - Indicates the position of the contacts and the fault tripping of its associated device. - To fit on the Left - hand side of DX3 MCBs, RCCBs, RCBOs and isolating switches - Consumption : 0,236 W - 19.7 mA (12 V =) - Number of modules : 0,5

Device fitting	Other
Function	Auxiliary switch/fault-signal switch
Width in number of modular spacings	0.5
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0
Number of fault-signal switches	0

Rated switch current	0 A
Rated voltage	0 V
Voltage type	DC
With auto test for earth leakage function	No
Suitable for max. number of poles main contact unit (total)	4
Suitable for max. current main contact unit	0 A
