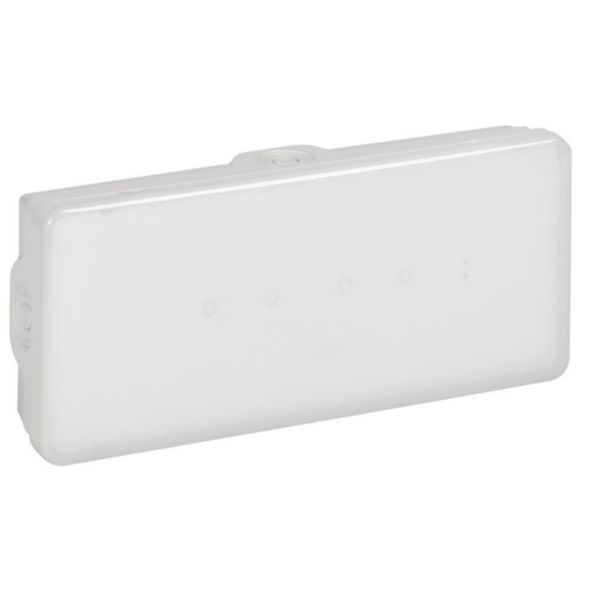

Name: Emergency lighting luminaire B65LED Non Permanent 500lm 1h Standard IP65 IK07
SKU: 661429

Emergency lighting luminaire B65LED Non Permanent 500lm 1h Standard IP65 IK07

B65LED LEGRAND

Emergency lighting luminaire B65LED Non Permanent 500lm 1h Standard IP65 IK07

REF. 661429 EAN. 3414971994591

Compare You can only compare 4 products, you must remove 1 to add this one

Weatherproof IP65, IK07, with opal diffuser, high luminosity LEDs with optimized light distribution, LED lifetime around 150,000 hours
For surface - mounting installation only, with 3 cable entries made in bi - material like in Plexo boxes
Automatic connection terminal blocks for power supply and for rest mode wires with wiring capacity of 2,5 mm², with protection against hazardous connection to 230V. Green LED charging located in the centre of the luminaire.
Power supply: 230 V +/- 10% - 50/60 Hz. Ni-Cd or Ni-MH battery.
3 cable entries: 1 on each lateral side and 1 on upper side.

Cable entries with elastomer material, allowing direct access with cable, rigid tube or ringed sheath like in Plexo boxes.

Base in grey color, giving a perfect integration in weatherproof or industrial installation environments
Charging indicator with green LED located in the centre of the luminaire, allowing better visibility

Mounting method	Wall surface mounted
Function	Escape route lighting/signage
Suitable for labelling type	Sticker
Type of indicator	Single-sided
With pictogram	No
Suitable for continuous circuit	Yes
With remote switch connection	No
Supplied remote control	No
Emergency function monitoring system	Automatic self test
Emergency power supply system	Peripheral (individual battery)
Battery technology	NiCd
Type of lithium-ion battery	Other
With heating element for battery	No
Lamp type	LED exchangeable
With light source	Yes
Suitable for number of light sources	4
Lamp holder	Other
Housing material	Plastic
Housing colour	Grey
Material cover	Plastic, opal
Voltage type	AC
Nominal voltage (Min-Max)	207-253 V
Nominal current (Min-Max)	10.8-10.8 mA
Type of control gear	LED operating device current-controlled
Light distributor	Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C	105000 h
Degree of protection (IP)	IP65
degree of impact strength (IK)	IK07
Protection class according to IEC 61140	II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Luminous flux in emergency mode	500 lm
Rated luminous flux according to IEC 62722-2- 1 (Min-Max)	500-500 lm
Max. system power	2.5 W

Colour temperature (Min-Max)	5000-6500 K
Nominal operation time (Min-Max)	1-1 h
Width	120 mm
Height/depth	59.7 mm
Length	280 mm
Number of poles	4
Conductor cross section	2.5 mm²
Connection type	Other
Connectable conductor cross section (Min-Max)	1.5-2.5 mm²
Operating / setting temperature (Min-Max)	0-40 °C
Storage temperature (Min-Max)	0-40 °C
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	Yes
Terminal marking indication	Yes
Halogen free	Yes
Cable nature for connection	Flexible or rigid
Tube diameter for wall mounted product (Min-Max)	16-25 mm
Maximum Input cable diameter	25 mm
Horizontal fixing center distance (Min-Max)	185-225 mm
Cable support	With zigzag
Cable tie suitable with	Not applicable
Control mode	Wired
Contains Batteries and/or Accumulator	Yes
Addressable	No
Battery ou Accumulator (Pack1)	Accumulator (rechargeable)
Element Composition (Pack1)	Nickel metal hydride
Number of Pack 1	1
Number of Single Element (Pack1)	4
Single Element weight (Pack1)	182 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	I : Industrial (not Portable)
Connected object	No
