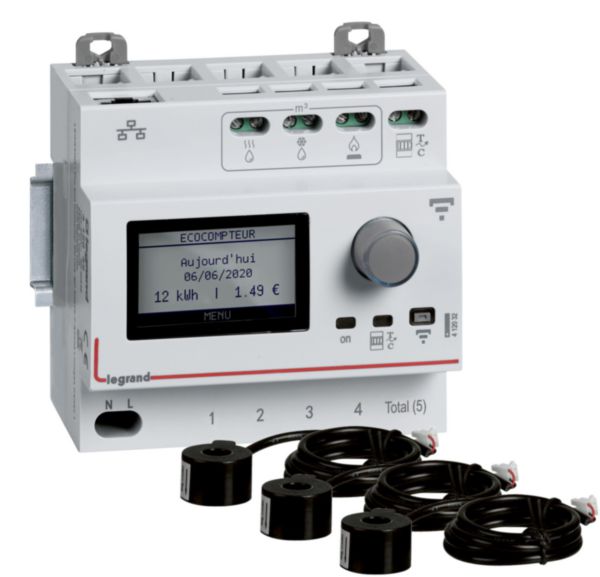

EMDX³ with Netatmo CONNECTED ECOMETER 100-240V~ 50/60Hz supplied with 3 single-phase 80A closed current transformers

Name: EMDX³ with Netatmo CONNECTED ECOMETER 100-240V~ 50/60Hz supplied with 3 single-phase 80A closed current transformers
SKU: 199119

EMDX³ with Netatmo Legrand

REF. 199119 EAN. 3414972485654

Compare You can only compare 4 products, you must remove 1 to add this one

Type of meter	Electronic
Nominal current (In)	60 A
Max. current (Imax)	80 A
Nominal voltage (Un) N-L (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Pole type	Single phase
Model	Measurement transformer
Energy type	Effective power
Suitable for	Purchase/supply
Tariff type	Two-tariff
Tariff control	Internal/external
Measurement type load profile	Yes
Calibrated	Yes
Approval	Domestic
Pulse output	None
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	5
Width	90 mm
Depth	77 mm
Height	83 mm
Type of interface	Other
EEC40 signature	No
With lock code	No
Number of positions total (counter)	5

Degree of protection (IP)	IP40
degree of impact strength (IK)	IK02
Operating / setting temperature (Min-Max)	-25-55 °C
Storage temperature (Min-Max)	-25-55 °C
Voltage type	AC
Terminal marking indication	Yes
Stress test conformity (1000V)	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Prewired	No
Connection type	Push-in clamp
Label space/information surface	No
Connected object	Yes
Operating method	Network , Wifi network 2.4G , Zigbee
Application store for download	App Store , Google Play Store
With voice command	No
Programmable	Yes
Interoperable connection Protocol	No
Connectable by Internet box	Yes
Product use function	Energy measurement and metering
Application name	Home + Control
Programming way	Smartphone apps

4 documents

Select all

Instruction Use

199119_FR.pdf pdf (6.59 Mo)

Instruction Use

LE12928AA_03_EN.pdf pdf (1.58 Mo)

Instruction Use

LE12928AA_03-FR.pdf pdf (1.62 Mo)

Technical Sheet

F03388FR_05.pdf pdf (1.67 Mo)

1 document

Select all

Agreement

Decl. UE RED-20-467-01 (0.04 Mo)
