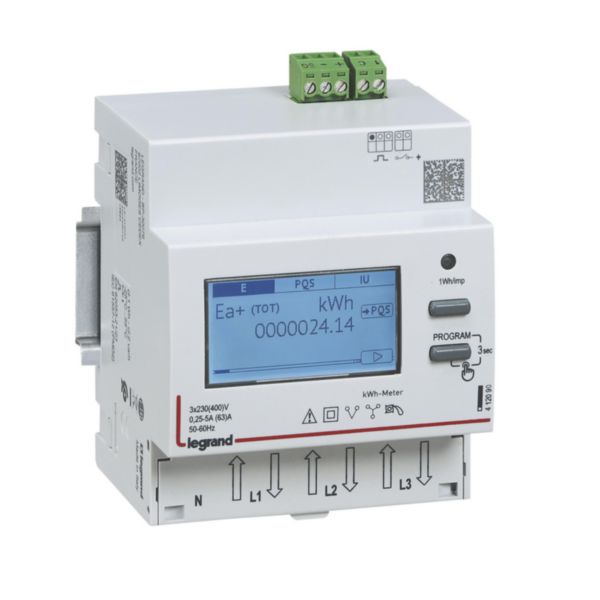

Name: EMDX3 energy meter tri direct 63A 230/400V pulse
SKU: 412090

EMDX3 energy meter tri direct 63A 230/400V pulse

EMDX³ LEGRAND

EMDX3 energy meter tri direct 63A 230/400V pulse

REF. 412090 EAN. 3414971413870

Compare You can only compare 4 products, you must remove 1 to add this one

Simple installation by direct connection up to 63A without the use of a current transformer. Limited location due to its compact size of 2 modules. Easy connection of communication thanks to removable connectors. Pulse input to collect water or gas meters without using added concentrator device.

Backlit display and simple access to easy reading of data. Pre-visualization of parameters. Settings mode protected by user code Bidirectional measure of production and consumption energies

Type of meter	Electronic
Nominal current (In)	5 A
Max. current (Imax)	63 A
Nominal voltage (Un) N-L	197-265 V
Nominal voltage (Un) L-L	340-460 V
Frequency	47-63 Hz
Accuracy class	B
Pole type	Three conductor/four conductor
Model	Direct measurement
Energy type	Effective power and reactive power
Suitable for	Purchase/supply
Tariff type	Two-tariff
Tariff control	External
Measurement type load profile	No
Escapement mechanism	Yes
Calibrated	Yes
Approval	Domestic
Pulse output	Optical
Pulse type	S0
Pulse rate	0.001-10 Imp/kWh (kvarh)
Type of indication	Digital

Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	4
Width	71.2 mm
Depth	66 mm
Height	92.4 mm
Type of interface	None
With lock code	Yes
Number of positions total (counter)	9
Degree of protection (IP)	IP54
Operating / setting temperature	-25-55 °C
Storage temperature	-25-70 °C
Voltage type	AC
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Prewired	No
Connection type	Screwed terminal
Terminals capacity	1-16 mm²
Label space/information surface	No
Connected object	No
