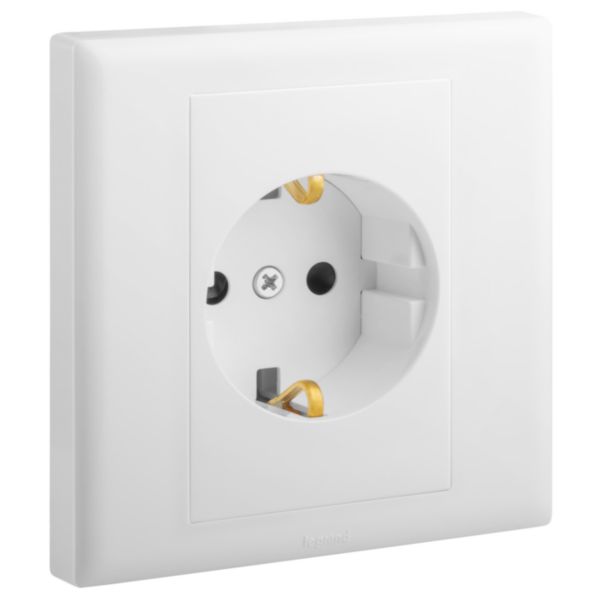

Eloe - 1 gang Schuko (German) 16 a socket - White

Name: Eloe - 1 gang Schuko (German) 16 a socket - White
SKU: 618056

Eloe LEGRAND

REF. 618056 EAN. 3414972265300

Compare You can only compare 4 products, you must remove 1 to add this one

Delivered with its protective shell against paint and dust during installation phase
Delivered with screws for flush & surface boxes in both plastic and metal boxes
A squarrish shape designed with a full rocker plate aesthetic

Model	Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor	No
Protective contact	Other
Number of active contacts (round)	2
Number of active contacts (flat)	0
Number of active contacts (square)	0
Assembly arrangement	Basic element with full cover plate
Number of ports USB-A	0
Number of ports USB-C	0
Number of socket outlets	1
Socket outlets phase-separated	No
Number of modules (module system)	2
Number of socket outlets switchable	0
Number of phases	1
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	Yes
Colour	White
RAL-number (similar)	9003
Metallic colour	No
Transparent	No
Eject-mechanism	No
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic

Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Antimicrobial treatment	No
With on/off switch	Yes
Nominal current	16 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	86 mm
Device height	86 mm
Device depth	35 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Built-in depth	30.2 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
Connected object	No

1 document

Select all

Technical Sheet

F03746EN-00.pdf pdf (0.48 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0666.pdf pdf (0.07 Mo)

1 document

Select all

Agreement

OC / CB-FR_702362/M2 (0.3 Mo)
