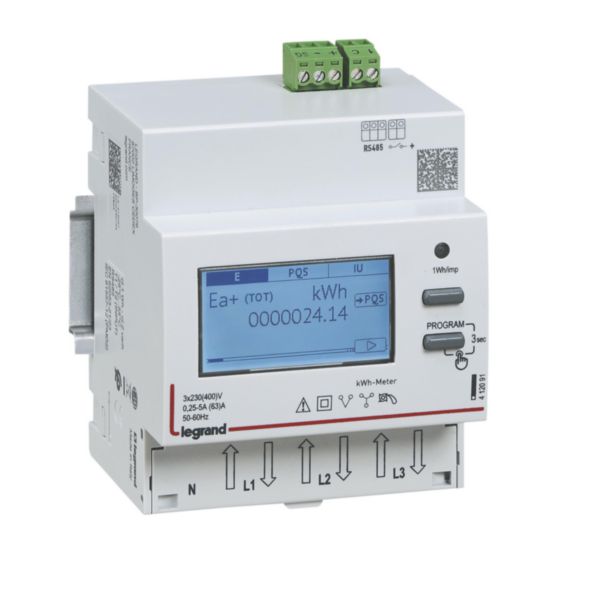

Name: eDMX³ energy meter tri direct 63A 230/400V 2tariff RS485 MID
SKU: 412093

eDMX³ energy meter tri direct 63A 230/400V 2tariff RS485 MID

EMDX³ LEGRAND

eDMX³ energy meter tri direct 63A 230/400V 2tariff RS485 MID

REF. 412093 EAN. 3414971413931

Compare You can only compare 4 products, you must remove 1 to add this one

Direct connection up to 63A 3P or 3P+N.
Communication : Modbus RS 485.
Double tariff or Pulse input to collect other meter (gas, water, electrical meters).
MID Certified.
Bidirectional measure of production and consumption energies.

Simple installation by direct connection up to 63A without the use of a current transformer. Easy connection of communication thanks to removable connectors. One input connector for double tariff or Pulse input to collect water or gas meters without using added concentrator device.

Backlit display and simple access to easy reading of data. Pre-visualization of parameters. Settings mode protected by user code Bidirectional measure of production and consumption energies

Type of meter	Electronic
Nominal current (In)	5 A
Max. current (Imax)	63 A
Nominal voltage (Un) N-L	197-265 V
Nominal voltage (Un) L-L	340-460 V
Frequency	49-61 Hz
Accuracy class	B
Pole type	Three conductor/four conductor
Model	Direct measurement
Energy type	Effective power and blind power
Suitable for	Purchase/supply
Tariff type	Two-tariff
Tariff control	External
Measurement type load profile	No
Escapement mechanism	Yes
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	None
Type of indication	Digital
Mounting method	DRA (DIN-rail adapter)

Width in number of modular spacings	4
Width	71.2 mm
Depth	66 mm
Height	92.4 mm
Type of interface	RS-485
With lock code	Yes
Number of positions total (counter)	9
Degree of protection (IP)	IP54
Operating / setting temperature	-25-55 °C
Storage temperature	-25-70 °C
Voltage type	AC
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Prewired	No
Connection type	Screwed terminal
Terminals capacity	1-16 mm²
Label space/information surface	No
Connected object	No
