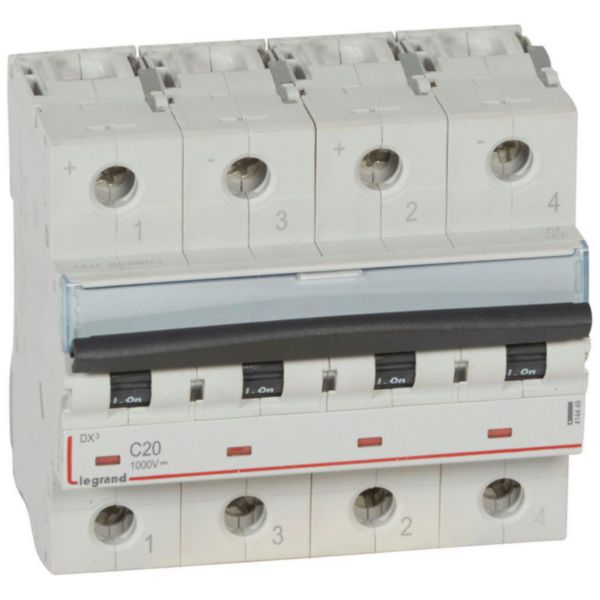

DX³ - Modular MCB - 2P - B20 - 1000V DC - 6 Modules - IP20 - Photovoltaic Application - Halogen-Free

Name: DX³ - Modular MCB - 2P - B20 - 1000V DC - 6 Modules - IP20 - Photovoltaic Application - Halogen-Free
SKU: 414449

DX³ Legrand

REF. 414449 EAN. 3245064144490

Compare You can only compare 4 products, you must remove 1 to add this one

Built-in depth	44 mm
Release characteristic	B
Number of poles (total)	2
Number of protected poles	2
Rated current	20 A
Rated voltage	1000 V
Rated insulation voltage Ui	1000 V
Rated impulse withstand voltage Uimp	8 kV
Voltage type	DC
Flush-mounted installation	Yes
Concurrently switching neutral conductor	No
Pollution degree	2
Additional equipment possible	Yes
Width in number of modular spacings	6
Degree of protection (IP)	IP20
Connectable conductor cross section multi-wired (Min-Max)	1.5-35 mm²

Connectable conductor cross section solid-core (Min-Max)	1.5-50 mm²
Explosion-proof	No
Width	70.8 mm
Height	88 mm
Depth	76 mm
degree of impact strength (IK)	IK02
Storage temperature (Min-Max)	-40-70 °C
Electric supplying direction	By the top
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Screwed terminal , Cable
Label space/information surface	Yes
Mounting method	DIN rail
