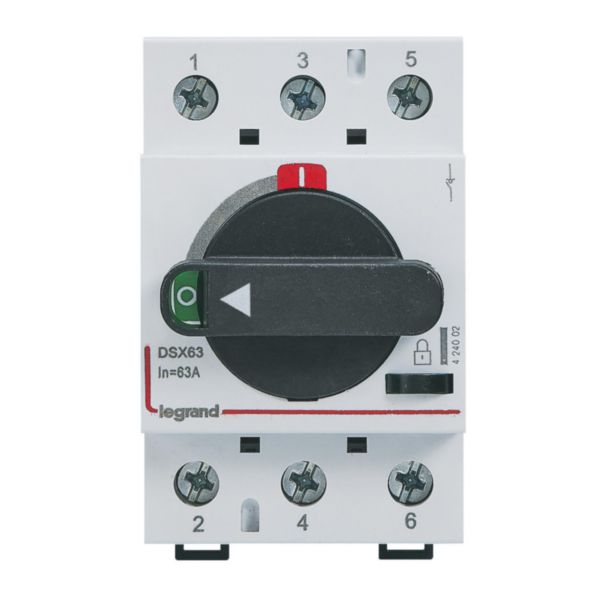

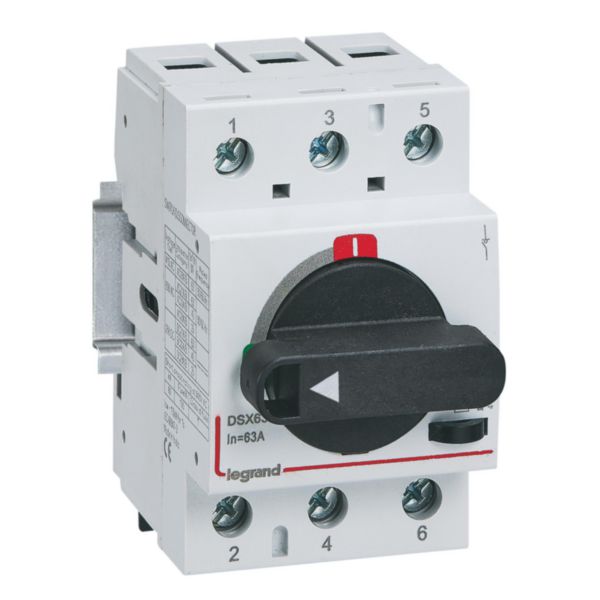

Name: DSX Switch disconnector SD Frame 1 ( 63A) - 3 poles - Rated current = 63A - mounting on DIN rail
SKU: 424002

DSX Switch disconnector SD Frame 1 ( 63A) - 3 poles - Rated current = 63A - mounting on DIN rail

DSX SD 63 LEGRAND

DSX Switch disconnector SD Frame 1 ( 63A) - 3 poles - Rated current = 63A - mounting on DIN rail

REF. 424002 EAN. 3414971920712

Compare You can only compare 4 products, you must remove 1 to add this one

Rated insulation voltage Ui = 1000V, rated impulse withstand voltage Uimp = 8kV, dielectric strength 50 Hz 1 min = 8kV
Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature,humidity, vibration, shock and salt mist.
Answer for standard market needs, compact design, innovation ,total coordination with legrand mccb and mcb ranges
Complete range of accessories: additional poles(neutral), rotary handles, sealable terminal shields IP30

Secondary distribution and emergency circuits, machine incomer, safety and maintenance

Secondary distribution and emergency circuits, machine incomer, safety and maintenance

Version as main switch	Yes
Version as maintenance-/service switch	Yes
Version as safety switch	Yes
Version as emergency stop installation	Yes
Version as reversing switch	No
Number of switches	1
Max. rated operation voltage Ue AC	690 V
Rated permanent current Iu	63 A
Rated permanent current at AC-23, 400 V	63 A
Rated permanent current at AC-21, 400 V	63 A
Rated short-time withstand current lcw	1.5 kA
Rated operation power at AC-23, 400 V	25.2 kW
Conditioned rated short-circuit current Iq	3 kA
Number of poles	3
Number of auxiliary contacts as normally closed contact	4
Number of auxiliary contacts as normally open contact	4
Motor drive optional	No
Motor drive integrated	No
Voltage release optional	No
Device construction	Built-in device fixed built-in technique
Suitable for floor mounting	No
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes
Type of control element	Turn button

Interlockable	No
Type of electrical connection of main circuit	Cable clamp
Degree of protection (IP), front side	IP20
Degree of protection (NEMA)	1
Width	52.5 mm
Height	83 mm
Depth	67.2 mm
Operating / setting temperature	-25-70 °C
Storage temperature	-25-70 °C
Voltage type	AC/DC
Electric supplying direction	By the top or bottom
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Terminals capacity	10-16 mm²
Connection type	Cable
Label space/information surface	No
Contains Batteries and/or Accumulator	No
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
IEC code (Pack2)	Not applicable
Battery ou Accumulator (Pack2)	Not applicable
Element Composition (Pack2)	Not applicable
