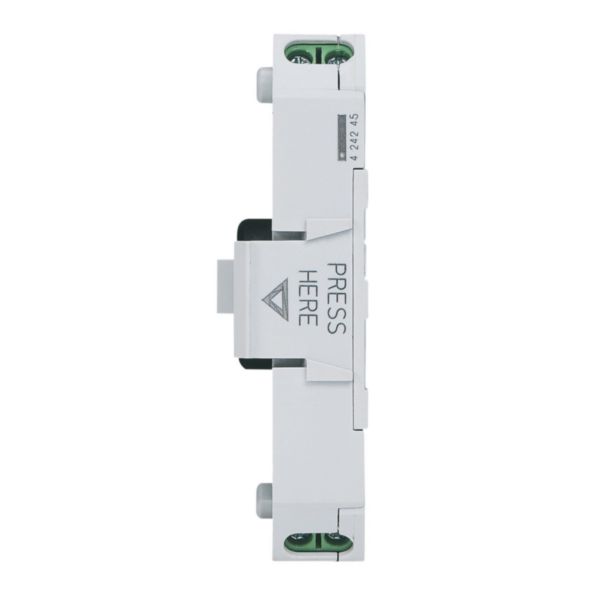

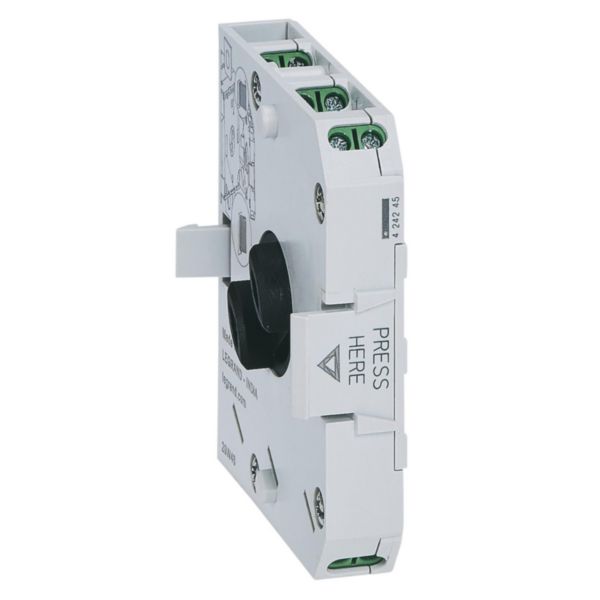

DSX Aux contact Simultaneous - (common Frame 1 & 2) 4(NO+NC)

Name: DSX Aux contact Simultaneous - (common Frame 1 & 2) 4(NO+NC)
SKU: 424245

DSX 160 320 LEGRAND

REF. 424245 EAN. 3414971979628

Compare You can only compare 4 products, you must remove 1 to add this one

Device fitting	Contactor/relay
Function	Auxiliary switch
Width in number of modular spacings	12
Number of contacts as normally open contact	4
Number of contacts as normally closed contact	4
Number of fault-signal switches	4
Rated switch current	5 A
Rated voltage	250 V
Voltage type	AC
With auto test for earth leakage function	No
Suitable for max. number of poles main contact unit (total)	4
Suitable for max. current main contact unit	320 A
Width	12 mm
Height	69 mm

Depth	60.5 mm
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-25-70 °C
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Screwed terminal
Terminals capacity (Min-Max)	0.5-2.5 mm²
Label space/information surface	No
Contains Batteries and/or Accumulator	No
Connected object	No
Application store for download	Not applicable
