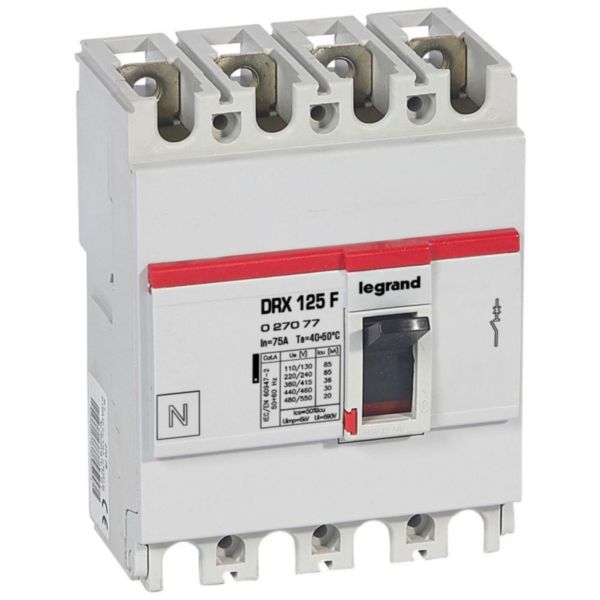

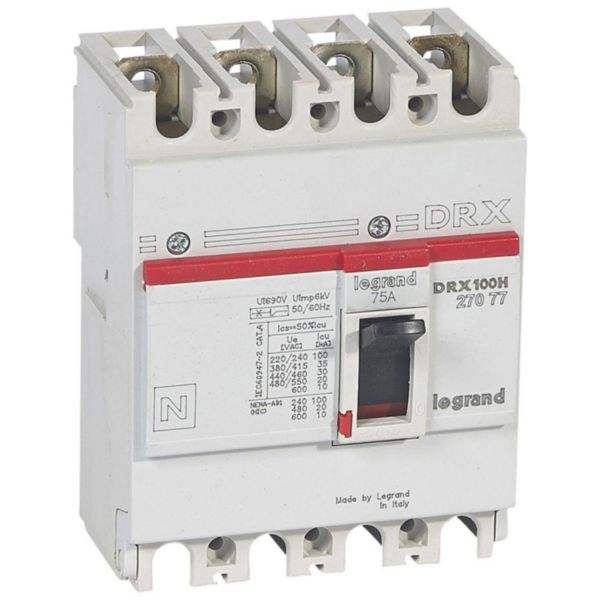

DRX 125 - MCCB - Icu 35 kA - 415 V~ - 4P - In 75 A - IP30 - screw connection

Legrand

DRX 125 - MCCB - Icu 35 kA - 415 V~ - 4P - In 75 A - IP30 - screw connection

REF. 027077 EAN. 3245060270773

The Legrand MCCB - DRX 125, with a 35 kA Icu at 415 V~ and In 75 A, features a 4-pole design, IP30, DIN rail mount, and under-voltage release for enhanced safety and performance.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Legrand MCCB - DRX 125, with a 35 kA Icu at 415 V~ and In 75 A, features a 4-pole design, IP30, DIN rail mount, and under-voltage release for enhanced safety and performance.

Technical characteristics

Rated permanent current Iu 75 A
Rated voltage (Min-Max) 110-550 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA
Overload release current setting (Min-Max) 75-75 A
Adjustment range short-term delayed short-circuit release (Min-Max) 750-750 A
Adjustment range undelayed short-circuit release (Min-Max) 750-750 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting Yes
DIN rail (top hat rail) mounting optional Yes
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as change-over contact 1
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional No
Degree of protection (IP) IP30
