Drivia Netatmo - Connected Water Heater - Pre-wired - App Control - Energy Schedules

Name: Drivia Netatmo - Connected Water Heater - Pre-wired - App Control - Energy Schedules
SKU: 199127

Legrand

REF. 199127 EAN. 3414972485814

Legrand Drivia Netatmo panel: Remote water heater control, energy-saving scheduling, 1-module, IP30, IK05, Wi-Fi enabled, voice assistant compatible.

Compare You can only compare 4 products, you must remove 1 to add this one

Legrand Drivia Netatmo panel: Remote water heater control, energy-saving scheduling, 1-module, IP30, IK05, Wi-Fi enabled, voice assistant compatible.

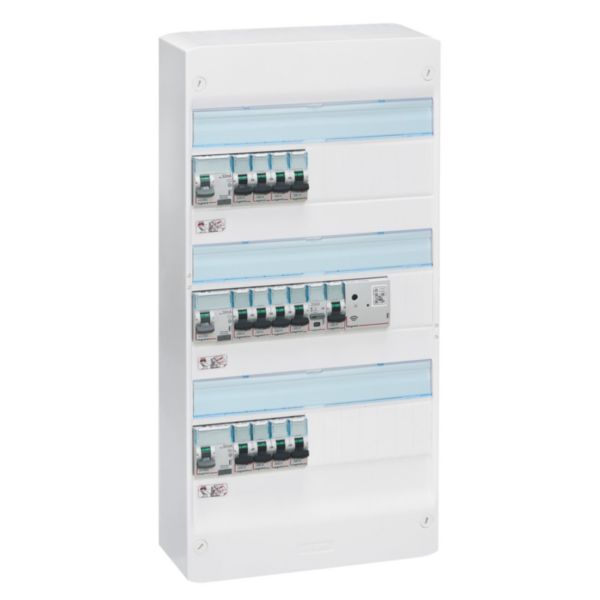

Ready-to-install equipped enclosure
3-row enclosure for a type T4 dwelling including suitable modular protections
Includes a Wifi bridge and a connected contactor with Netatmo for remote control and management of your water heater
Stay constantly informed of your water heater's consumption and manage your operating schedules from your smartphone, wherever you are, thanks to the Home + Control app.
Offer included in the Legrand with Netatmo connected home environment

Mounting method	Surface mounted
number of rows	3
Number of phases	1
Protection	Miniature-/earth leakage circuit breaker
Number of single-phase miniature circuit breakers (MCB)	12
Number of three-phase miniature circuit breakers (MCB)	0
Release characteristic	C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	3 kA
Total number of groups	3
Number of direct groups	12
Number of light groups	3
Number of groups behind earth leakage switch	1
Number of earth leakage circuit breakers	0
Number of earth leakage switches 30 mA	3
Number of earth leakage switches 300 mA	0
Number of arc fault detection devices AFDD	0
Protection main switch	No
Number of poles main switch	0
Main switch rated current	63 A
Protection incoming RCD	Yes
Protection high integrity	No
Protection split load	No
Protection dual RCD	No
Number of outgoing ways	12
Suitable for data	No
Cooker group	Single phase
Cooker group suitable as power current group	No
With socket outlet	No
With bell transformer	No
Overvoltage protection	No
With meter	No
Housing material	Plastic

Degree of protection (IP)	IP30
Height	500 mm
Built-in height	496 mm
Width	250 mm
Built-in width	246 mm
Width in number of modular spacings	13
Depth	103.5 mm
Extension possible	No
Type of covering	Cover
With transparent cover	No
Lockable	No
Colour	White
RAL-number	9003
Enclosure capacity (Nb of modules)	39
degree of impact strength (IK)	IK05
Operating / setting temperature (Min-Max)	-10-40 °C
Storage temperature (Min-Max)	-20-70 °C
Nominal voltage (Min-Max)	400-400 V
Electric supplying direction	By the top or bottom
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	No
Busbar type supplied	Vertical and horizontal
Number of supply busbars	7
Number of distribution blocks	1
Number of terminals by distribution block	1
Fitted with rainproof plate protection	No
Fitted with door or cover	Yes
Supplied with circuit identification labels	Yes
Vertical fixing center distance (Min-Max)	363-363 mm
Horizontal fixing center distance (Min-Max)	217-217 mm
Number of MCBs	13
