Double USB charging socket Valena Life - white

Valena Life Legrand

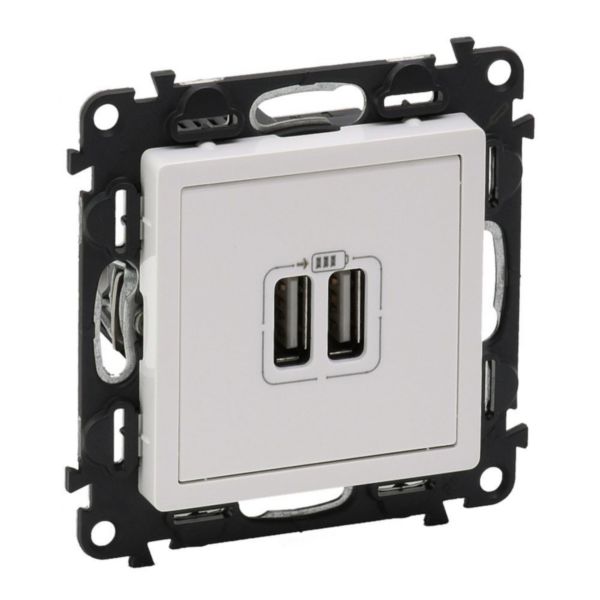

Double USB charging socket Valena Life - white

REF. 753112 EAN. 3414970456694
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics

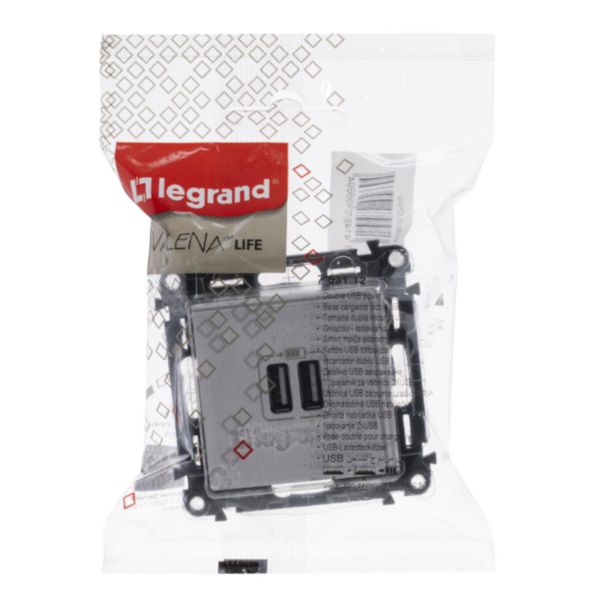

  • Valena™ Life - USB charging sockets with cover plate- Valena In’Matic mechanisms supplied with cover plates and support frames- To be equipped with plates- IP 2X protection- Supplied with mounted dust protection transparent shield- Flowpack packaging: robust protection to ensure optimum operation
  • USB charging sockets- 100-240 VA 50-60 Hz, 5 V - 2400 mA (1500 mA until 1st July 2016)- Screw terminals- Conform to standard IEC 62684-2011-01- For quickly charging mobile phones, tablet PCs, smartphones, MP3 and MP4 players- Free up a socket recess- Consumption in passive mode < 0.1 W class II SELV- Conform to the EEC directive on harmonisation of the charging standard for portable terminals and the harmonisation of mobile phone chargers- For installation in flush-mounting box depth 40 mm minimum- Supplied cordless - White Valena Life

Technical characteristics

Number of modules (module system) 2
Model Other
Number of ports USB-A 2
Number of ports USB-C 0
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Output voltage (Min-Max) 5-5 V
Power consumption 0.068 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour White
RAL-number 9003
Device width 75 mm
Device height 75 mm
Device depth 42 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 32 mm
Operating / setting temperature (Min-Max) 0-40 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15
Supply current (Min-Max) 0.5-0.5 A
Standby consumption 0.07 mA
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²

Documentation

2 documents
Technical Sheet
F01955FR-03.pdf pdf (0.2 Mo)
Technical Sheet
F01955EN-03.pdf pdf (0.21 Mo)
